| Onderdeel nommer | NV156FHM-AW1 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | 9S6P |
| Koppelvlak | |
| vervaardiger | BOE |

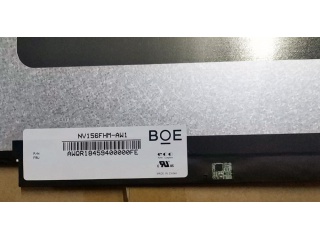

| model naam | NV156FHM-AW1 (BOE0678) |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| buitelyn (mm) | 379.9 × 233.6 × 4.47 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 72% NTSC |
| agterlig | 9S6P WLED , 15K hours , With LED Driver |
| omtrek vorm | Flat (PCBA Flat, T3.4~4.0mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Electromagnetic Digitizer |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
