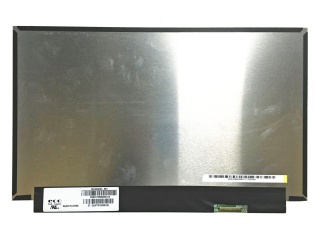

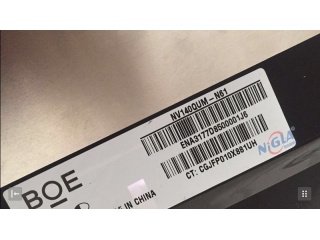

| Onderdeel nommer | NV140QUM-N61 |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | BOE |
| model | NV140QUM-N61 (BOE06DE) |
| diagonale grootte | 14.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 3840(RGB)×2160 [UHD] 315PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 309.31(H)×173.99(V) mm |
| buitelyn dof. | 315.01(H)×199.04(V) ×2.4(D) mm |
| ring area | - |
| behandeling | Antiglare (Haze 40%) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 35 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 100% sRGB |
| Ligbron | WLED [8S8P] , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C |
| B140EW01 V1 | AUO | 14.0 | 1280×768 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LTN140AT21-W01 | Samsung | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
