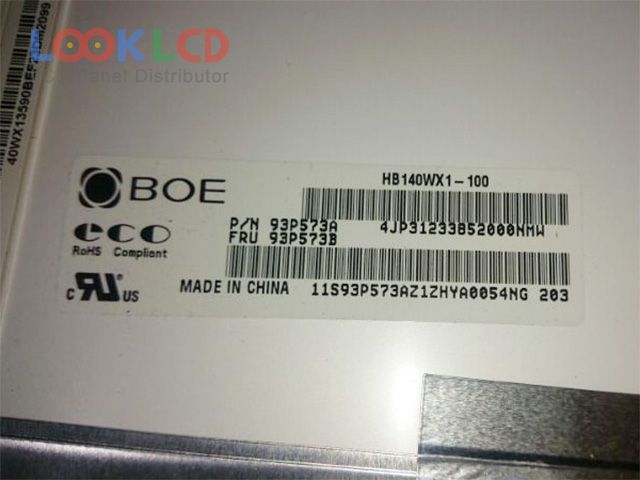

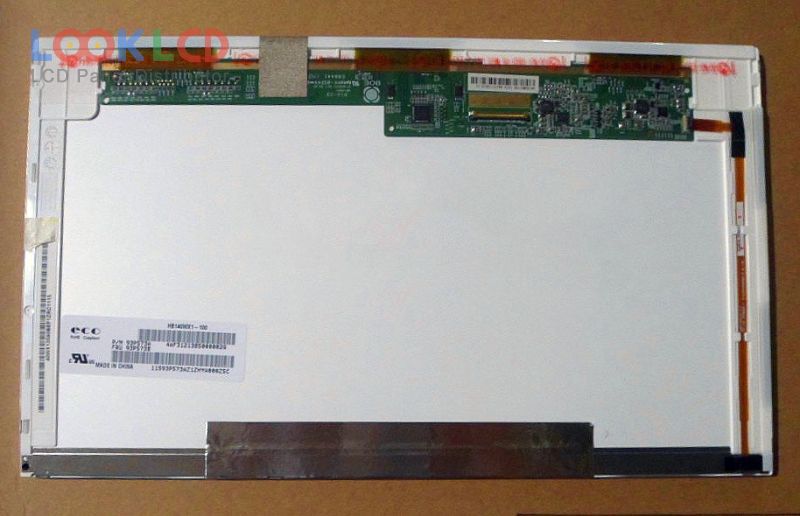

| Onderdeel nommer | HB140WX1-100 |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | NBPC |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | BOE |
| paneel model | HB140WX1-100 4 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.0 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 309.399×173.952 mm |
| buitelyn | 323.5×192×5.2 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193150% |
| reaksie tyd | 8 (Typ.)(Tr+Td) |
| kykhoek | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 8S5PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XW03 V1 | AUO | 14.0 | 1366×768 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP171WE3-TLA5 | LG Display | 17.1 | 1680×1050 |
| LP173WF1-TLA1 | LG Display | 17.3 | 1920×1080 |
| LTN140AT20-P02 | Samsung | 14.0 | 1366×768 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
