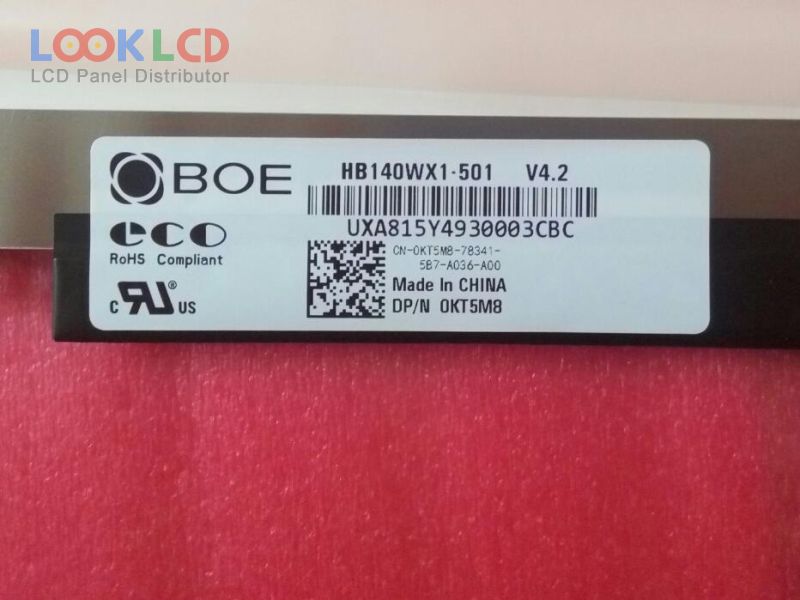

| Onderdeel nommer | HB140WX1-501 |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | NBPC |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | HB140WX1-501 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.0 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 309.399×173.952 mm |
| buitelyn | 320.9×187.6×3 mm |
| vorm styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| oppervlak | Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 12 (Typ.)(Tr+Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 9S4PWLEDEmbedded (LED Driver) |
| sein koppelvlak | eDP (1 Lane), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
