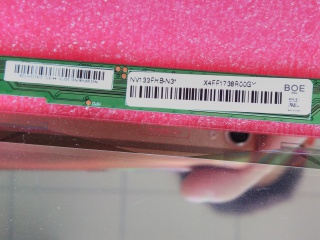

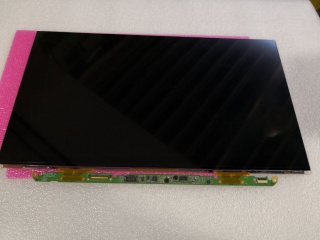

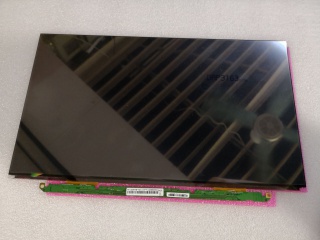

| Onderdeel nommer | NV133FHB-N31 |
| Handelsmerk | BOE |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| diagonale grootte | 13.3 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 166PPI |
| aktiewe area | 293.76(H)×165.24(V) mm |
| ring area | - |
| helderheid | 0 cd/m² |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| plaat dikte | 0.20+0.20 mm |
| ondersteun kleur | 16.7M 72% NTSC |
| vorm styl | - |
| raamkoers | 60Hz |
| d-ic detail | COG Built-in 4 source chips |
| koppelvlak tipe | eDP (2 Lanes) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | NV133FHB-N31 (BOE06E1) |
| tipe | a-Si TFT-LCD , CELL |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 298.36(H)×175.29(V) ×0.4(D) mm |
| behandeling | Without Polarizer |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| oordrag | - |
| Ligbron | No B/L |
| ontwerp vir | Laptop |
| raakpaneel | Without |
