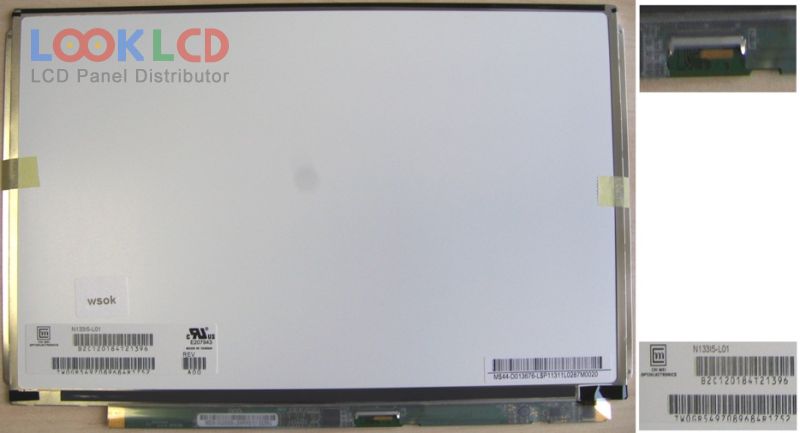

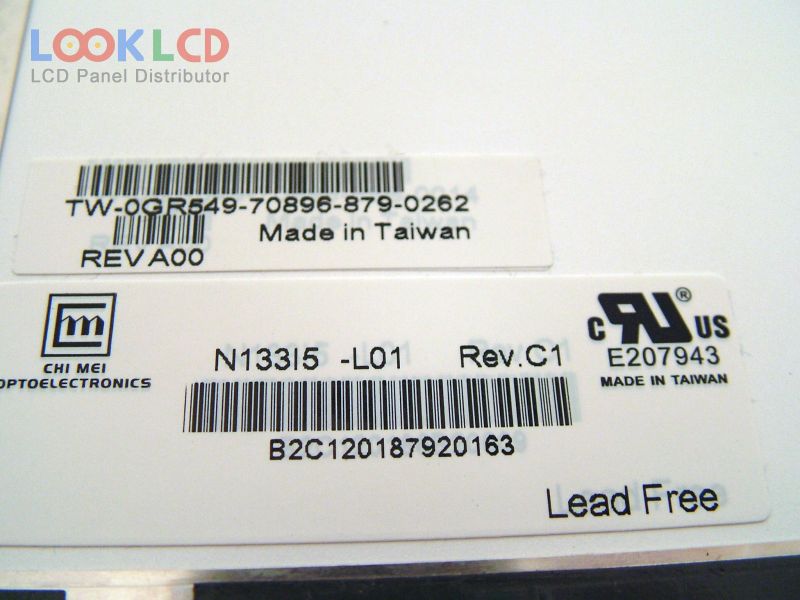

| Onderdeel nommer | N133I5-L01 |
| Handelsmerk | Innolux |
| Grootte | 13.3 |
| Toepassing | NBPC |
| Resolusie | 1280×800 |
| Samestelling | LCM |
| Helderheid | 300 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | N133I5-L01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 13.3 inch |
| resolusie | 1280(RGB)×800 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 286.08×178.8 mm |
| buitelyn | 304×202.5×3.67 mm |
| vorm styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 6/14 (Typ.)(Tr/Td) |
| kykhoek | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 8S6PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
