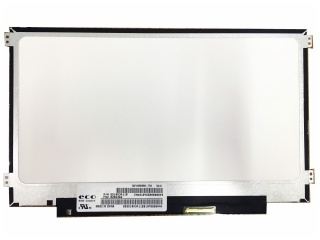

| Onderdeel nommer | NV116WHM-T01 |
| Handelsmerk | BOE |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | 8S3P |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | NV116WHM-T01 (BOE0786) |
| paneel grootte | 11.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 135PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 256.125(W)×144(H) mm |
| ring opening | - |
| omtrek grootte | 278(W)×168.5(H) ×3.2(D) mm |
| oppervlak | Hard coating |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 51% NTSC |
| tipe lamp | 8S3P WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | On-Cell Touch |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| LP116WF1-SPA1 | LG Display | 11.6 | 1920×1080 |
| LP116WH4-SLN2 | LG Display | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
| NT116WHM-N31 | BOE | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
