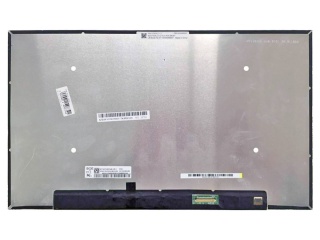

| Onderdeel nommer | NT140FHM-N46 |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 16.2M |
| Agterlig | 11S4P |
| Koppelvlak | eDP |
| vervaardiger | BOE |
| skerm grootte | 14.0 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 157PPI |
| aktiewe area (mm) | 309.31 × 173.99 (H×V) |
| ring area (mm) | - |
| helderheid | 220 cd/m² (Typ.) |
| kykhoek | 45/45/20/40 (Typ.)(CR≥10) |
| goeie uitsig by | 6 o'clock |
| kleurdiepte | 16.2M 45% NTSC |
| omtrek vorm | Slim (PCBA Bent, T≤3.0mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | NT140FHM-N46 (BOE08D9) |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 315.81 × 186.05 × 5 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| reaksie | 12 (Typ.)(Tr+Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | 11S4P WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
