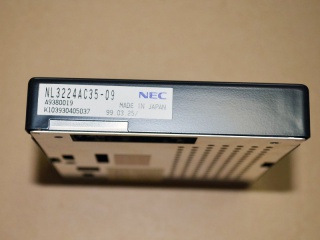

| Onderdeel nommer | NL3224AC35-09 |
| Handelsmerk | NEC |
| Grootte | 5.5 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | - |
| Koppelvlak | |
| paneel handelsmerk | NEC |
| paneel grootte | 5.5" |
| resolusie | 320(RGB)×240, QVGA, 72PPI |
| vertoon area | 111.36(W)×83.52(H) mm |
| helderheid | - |
| kykhoek | - |
| beste uitsig op | - |
| kleure vertoon | 262K |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | NL3224AC35-09 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 400:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 5/25 (Typ.)(Tr/Td) |
| tipe lamp | |
| raakskerm | Without |
| aansoek | Industrial |
