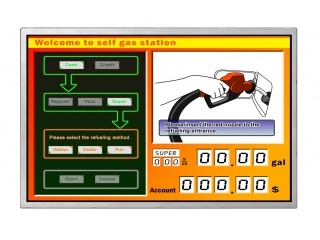

| Onderdeel nommer | NL12880BC20-25F |
| Handelsmerk | NLT |
| Grootte | 12.1 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1280×800 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K/16.7M |
| Agterlig | 3 |
| Koppelvlak | LVDS |
| vervaardiger | NLT |
| model naam | NL12880BC20-25F |
| skerm grootte | 12.1 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1280(RGB)×800 (WXGA) 124PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 261.12 × 163.2 (H×V) |
| buitelyn (mm) | 277.7 × 180.6 × 9.2 (H×V×D) |
| ring area (mm) | 266.1 × 168.2 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 1600 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| reaksie | 15 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K/16.7M 50% NTSC |
| agterlig | 3 strings WLED , 60K hours , No Driver |
| massa | 470g (Typ.) |
| gebruik vir | Industrial Outdoor High Brightness |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
