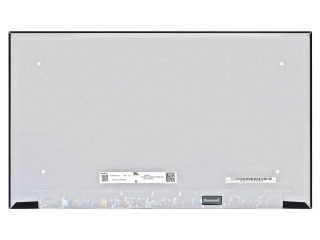

| Onderdeel nommer | N156HCE-G72 |
| Handelsmerk | Innolux |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M/1.06B |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | Innolux |
| model naam | N156HCE-G72 (CMN1529) 4 Compatible |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| buitelyn (mm) | 350.66 × 205.24 × 5 (H×V×D) |
| ring area (mm) | 346.76 × 196.69 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1200 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 11/9 (Typ.)(Tr/Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AAS, Normally Black, Transmissive |
| kleurdiepte | 16.7M/1.06B 100% sRGB |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Bent, T≤3.0mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (2 Lanes) , eDP1.2 , Connector 30 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
