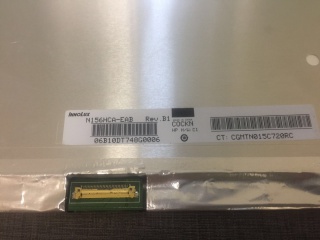

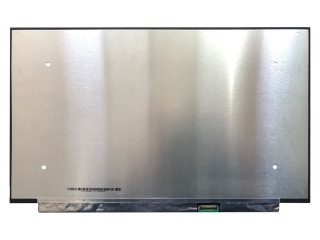

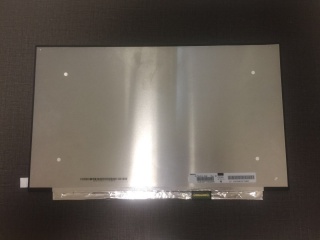

| Onderdeel nommer | N156HCA-EAB |
| Handelsmerk | Innolux |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | Innolux |
| diagonale grootte | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| aktiewe area | 344.16(H)×193.59(V) mm |
| ring area | - |
| helderheid | 250 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 45% NTSC |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 60Hz |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | N156HCA-EAB (CMN15E7) |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 350.66(H)×216.25(V) ×3.2(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 700:1 (Typ.) (TM) |
| reaksie tyd | 14/11 (Typ.)(Tr/Td) |
| bedryfsmodus | AAS, Normally Black, Transmissive |
| Ligbron | WLED , 15K hours , With LED Driver |
| ontwerp vir | Laptop |
| raakpaneel | Without |
