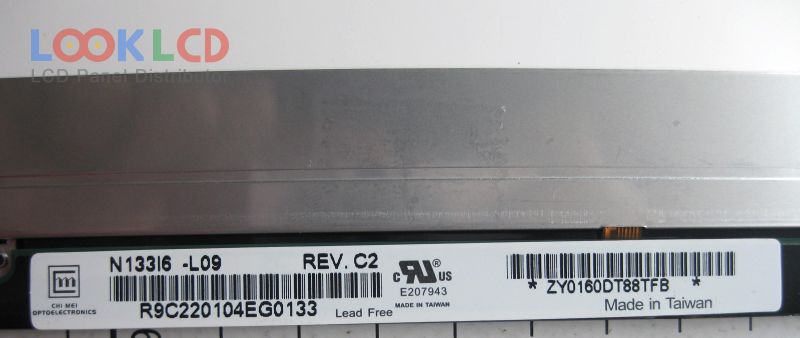

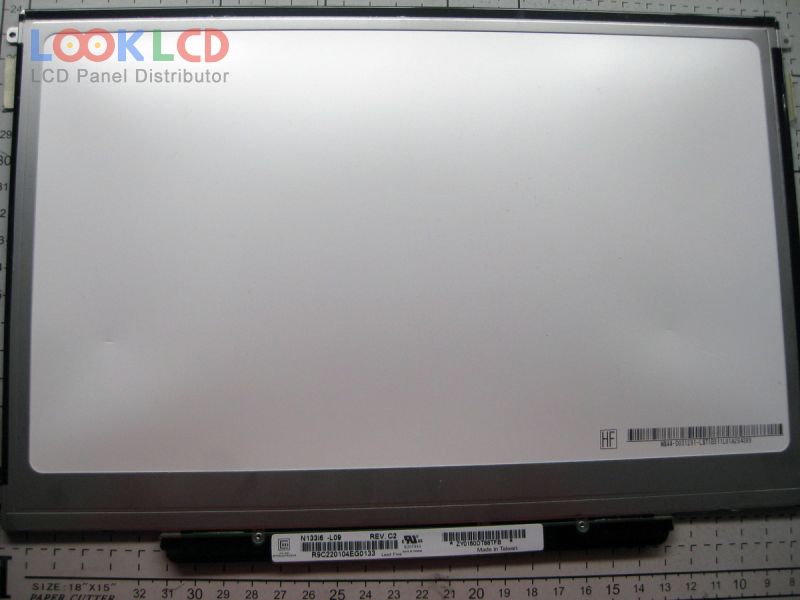

| Onderdeel nommer | N133I6-L09 |
| Handelsmerk | Innolux |
| Grootte | 13.3 |
| Toepassing | NBPC |
| Resolusie | 1280×800 |
| Samestelling | LCM |
| Helderheid | 290 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | N133I6-L09 8 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 13.3 inch |
| resolusie | 1280(RGB)×800 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 286.08×178.8 mm |
| buitelyn | 307.87×203.2×3.68 mm |
| vorm styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 290 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 3/7 (Typ.)(Tr/Td) |
| kykhoek | 70/70/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6 stringsWLEDWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
