{{handelsmerk}} MT190AW01 V.5 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

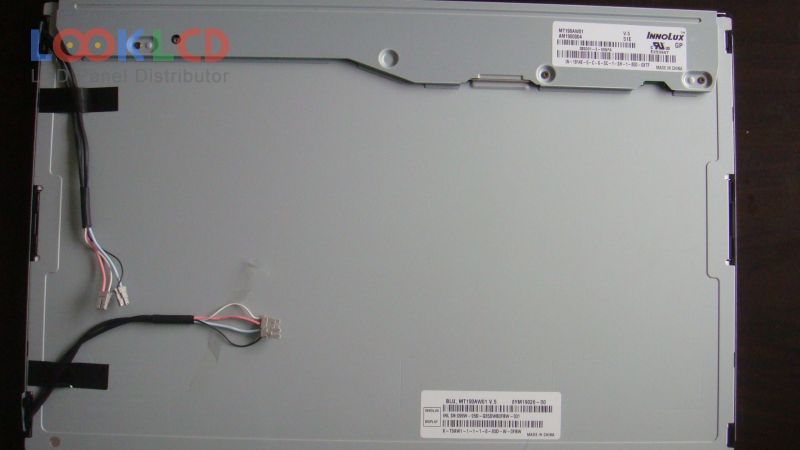

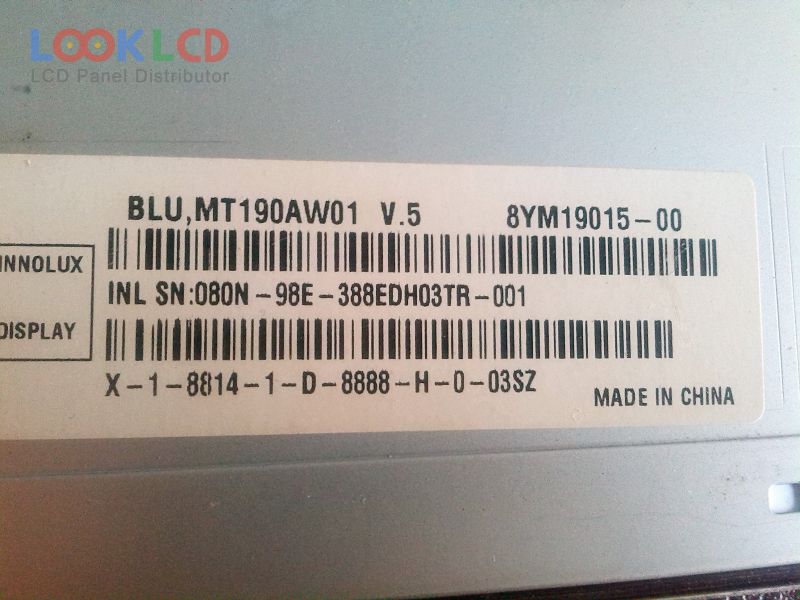

MT190AW01 V.5

MT190AW01 V.5
MT190AW01 V.5
MT190AW01 V.5
MT190AW01 V.5 thumb MT190AW01 V.5 thumb MT190AW01 V.5 thumb
Handelsmerk
Innolux
Grootte
19.0
Toepassing
DMPC
Resolusie
1440×900
Samestelling
LCM
Helderheid
300
CR
1000:1
Kleure
16.7M
Agterlig
CCFL
Koppelvlak
LVDS
In Stock
12779
Spesifikasies

Onderdeel nommer MT190AW01 V.5
HandelsmerkInnolux
Grootte19.0
ToepassingDMPC
Resolusie1440×900
SamestellingLCM
Helderheid300
CR1000:1
Kleure16.7M
AgterligCCFL
KoppelvlakLVDS
paneel handelsmerkINNOLUX
paneel modelMT190AW01 V.5
paneel tipe a-Si TFT-LCD , LCM
paneel grootte19.0 inch
resolusie1440(RGB)×900 , WXGA+
vertoonmodusTN, Normally White, Transmissive
aktiewe area410.4×256.5 mm
buitelyn427.2×277.4×16.5 mm
oppervlakAntiglare (Haze 25%), Hard coating (3H)
helderheid300 cd/m² (Typ.)
kontras verhouding1000:1 (Typ.)
kleure vertoon16.7M (6-bit + Hi-FRC), CIE193174%
reaksie tyd1.5/3.5 (Typ.)(Tr/Td)
kykhoek85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp4 pcsCCFLWithout Driver
sein koppelvlakLVDS (2 ch, 8-bit), 30 pins
insetspanning5.0V (Typ.)
aansoekDMPC
Familie Model
M190EG01 V0 AUO 19.0 1280×1024
MT190AW01 V.5 Innolux 19.0 1440×900
MT190AW01 V.7 Innolux 19.0 1440×900
MT190AW01 V.C Innolux 19.0 1440×900
MT190AW02 V.0 Innolux 19.0 1440×900
MT190AW02 V.4 Innolux 19.0 1440×900
MT190AW02 V.A Innolux 19.0 1440×900
MT190AW02 V.V Innolux 19.0 1440×900
MT190AW02 V.W Innolux 19.0 1440×900
MT190AW02 V.Y Innolux 19.0 1440×900
