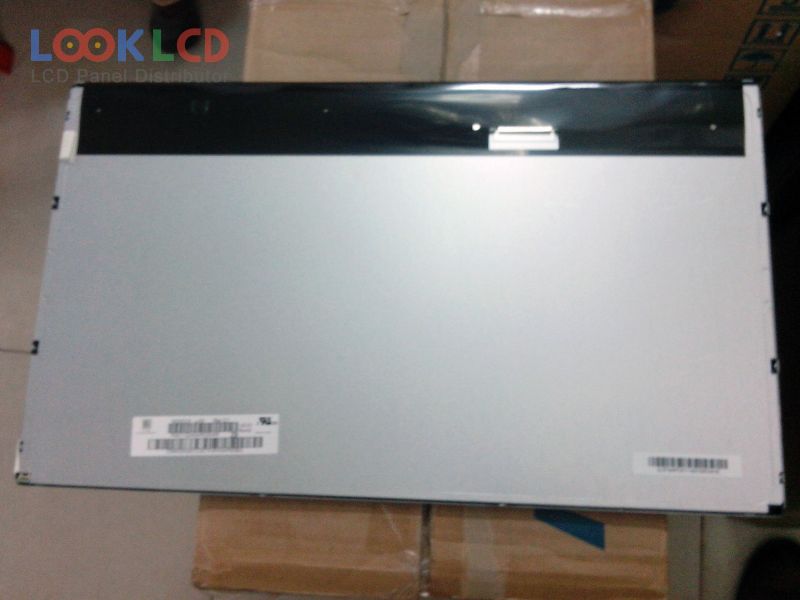

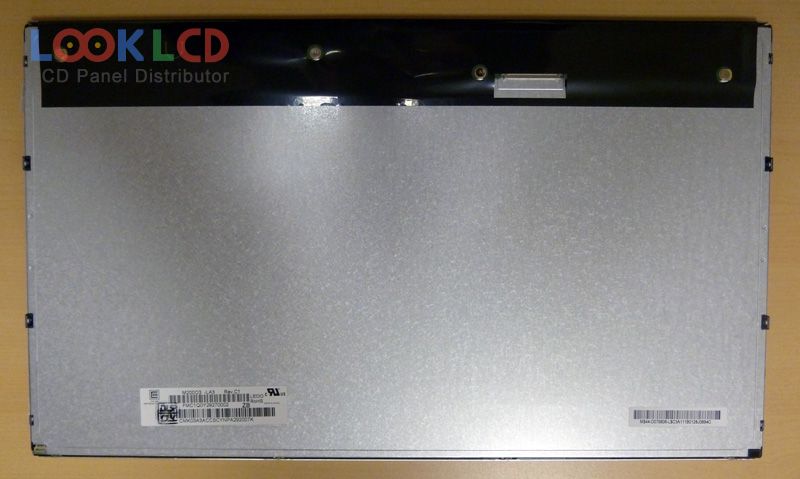

| Onderdeel nommer | M200O3-LA3 |
| Handelsmerk | Innolux |
| Grootte | 20.0 |
| Toepassing | DMPC |
| Resolusie | 1600×900 |
| Samestelling | LCM |
| Helderheid | 250 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CHIMEI INNOLUX |
| paneel model | M200O3-LA3 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 20.0 inch |
| resolusie | 1600(RGB)×900 , HD+ |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 442.8×249.075 mm |
| buitelyn | 462.8×272×11 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 1.5/3.5 (Typ.)(Tr/Td) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 11S4PWLEDWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
