{{handelsmerk}} M185XW01 V3 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

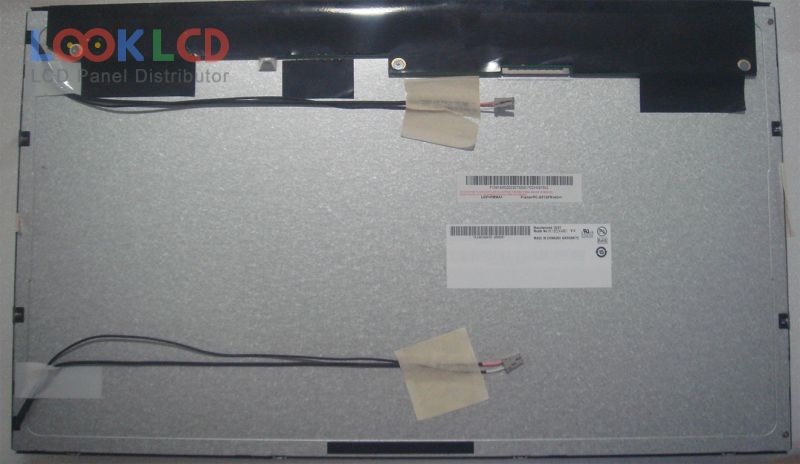

M185XW01 V3

M185XW01 V3
M185XW01 V3 thumb
Handelsmerk
AUO
Grootte
18.5
Toepassing
DMPC
Resolusie
1366×768
Samestelling
LCM
Helderheid
250
CR
1000:1
Kleure
16.7M
Agterlig
WLED
Koppelvlak
LVDS
In Stock
12319
Spesifikasies

Onderdeel nommer M185XW01 V3
HandelsmerkAUO
Grootte18.5
ToepassingDMPC
Resolusie1366×768
SamestellingLCM
Helderheid250
CR1000:1
Kleure16.7M
AgterligWLED
KoppelvlakLVDS
paneel handelsmerkAUO
paneel modelM185XW01 V3
paneel tipe a-Si TFT-LCD , LCM
paneel grootte18.5 inch
resolusie1366(RGB)×768 , WXGA
vertoonmodusTN, Normally White, Transmissive
aktiewe area409.8×230.4 mm
buitelyn430.4×254.6×12.3 mm
oppervlakAntiglare, Hard coating (3H)
helderheid250 cd/m² (Typ.)
kontras verhouding1000:1 (Typ.)
kleure vertoon16.7M (6-bit + Hi-FRC), CIE193167%
reaksie tyd3.6/1.4 (Typ.)(Tr/Td)
kykhoek85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lampWLEDWithout Driver
sein koppelvlakLVDS (1 ch, 8-bit), 30 pins
insetspanning5.0V (Typ.)
aansoekDMPC
