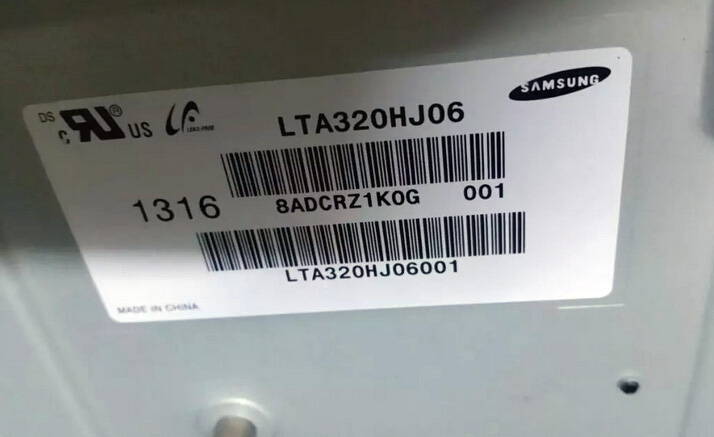

| Onderdeel nommer | LTA320HJ06-W |
| Handelsmerk | SAMSUNG |
| Grootte | 32.0 |
| Toepassing | TV Sets |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 5000:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | SAMSUNG |
| skerm grootte | 32.0 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 69PPI |
| aktiewe area (mm) | 698.4 × 392.85 (H×V) |
| ring area (mm) | 705.4 × 400 (H×V) |
| helderheid | 350 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 1.07B 70% NTSC |
| massa | 5.00/5.5Kgs (Typ./Max.) |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (2 ch, 10-bit) , 61 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | LTA320HJ06-W |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 726.2 × 422.9 × 27.9 (H×V×D) |
| behandeling | Antiglare (Haze 2%), Hard coating (2H) |
| kontras verhouding | 5000 : 1 (Typ.) (TM) |
| reaksie | 8 (Typ.)(G to G) ms |
| werksmodus | SPVA, Normally Black, Transmissive |
| agterlig | WLED , 35K hours |
| gebruik vir | TV Sets |
| raakskerm | Without |
| LTA320AN01-C | Samsung | 31.5 | 1366×768 |
| LTA320AN01-W | Samsung | 31.5 | 1366×768 |
| LTA320AN12 | Samsung | 31.5 | 1366×768 |
| LTA320AP16 | Samsung | 31.5 | 1366×768 |
| LTA320HA02 | Samsung | 31.5 | 1920×1080 |
| LTA320HA04 | Samsung | 31.5 | 1920×1080 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| LTA320HN03-W | Samsung | 31.5 | 1920×1080 |
| LTA320HN04-W | Samsung | 31.5 | 1920×1080 |
| LTA320WT-L16 | Samsung | 31.5 | 1366×768 |
