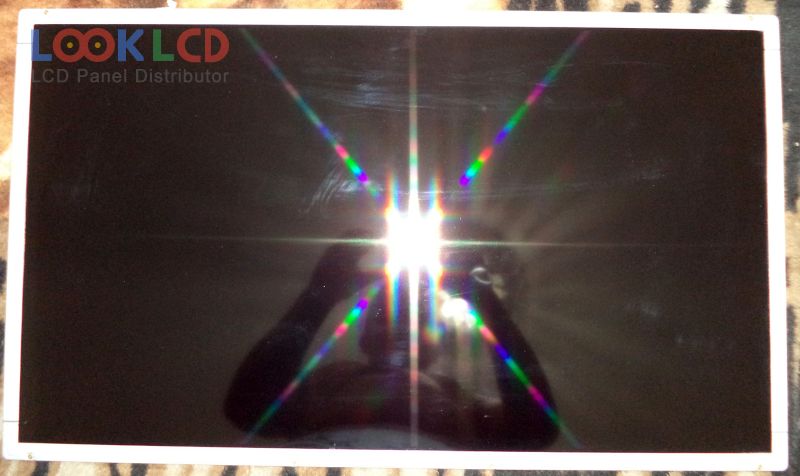

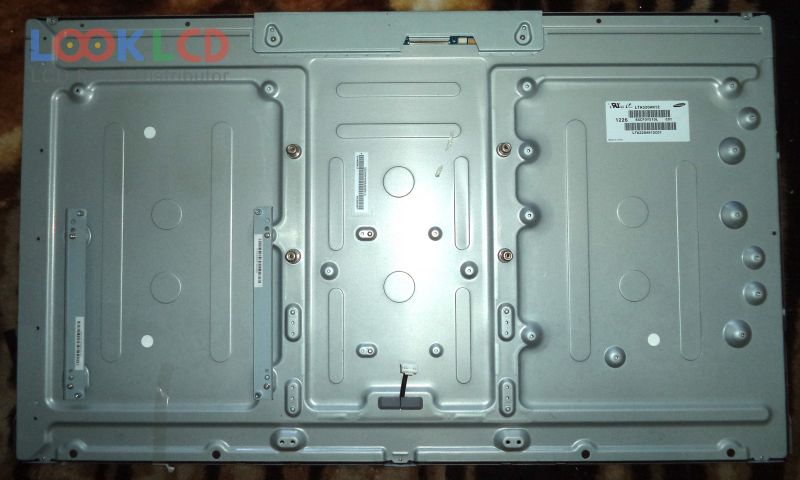

| Onderdeel nommer | LTA320AN12 |
| Handelsmerk | Samsung |
| Grootte | 31.5 |
| Toepassing | LCTV |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 320 |
| CR | 4000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTA320AN12 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 31.5 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | PVA, Normally Black, Transmissive |
| aktiewe area | 697.685×392.256 mm |
| buitelyn | 734.4×430.3 mm |
| oppervlak | Antiglare, Hard coating |
| helderheid | 320 cd/m² (Typ.) |
| kontras verhouding | 4000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193170% |
| reaksie tyd | 20 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 30 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
