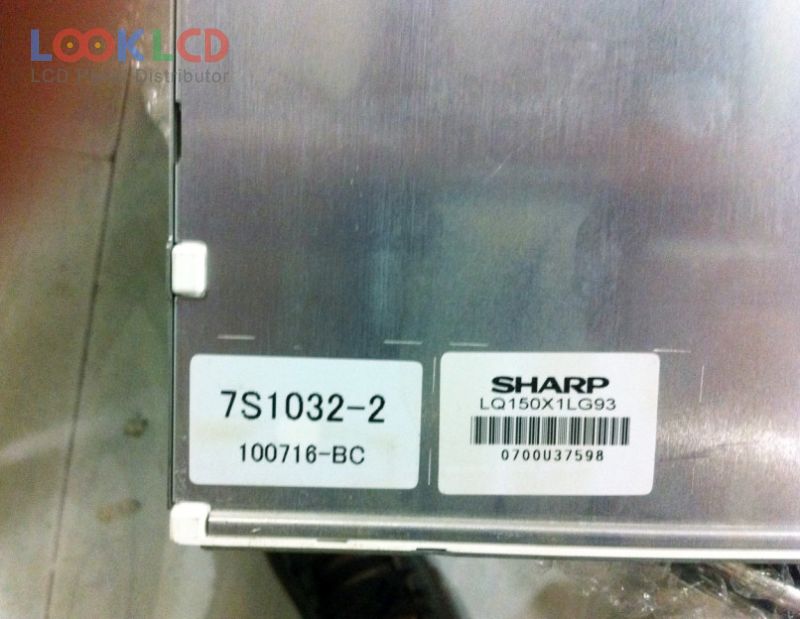

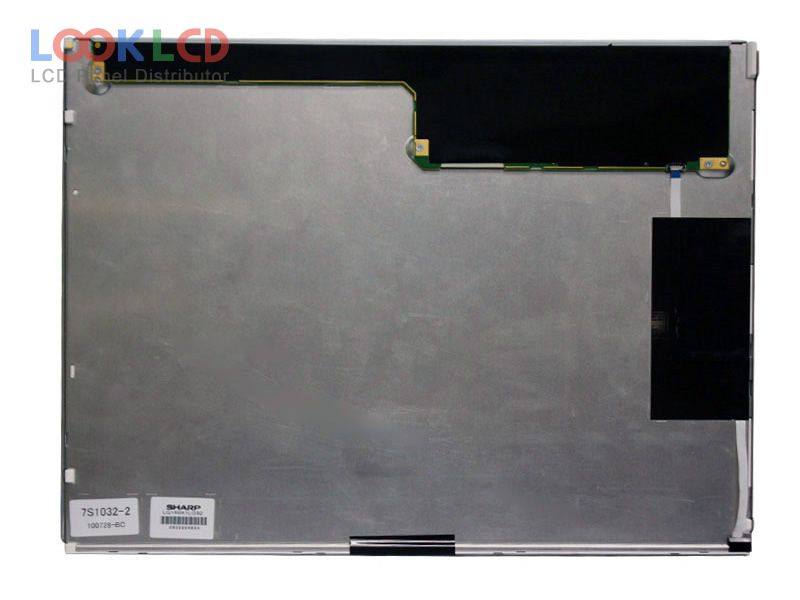

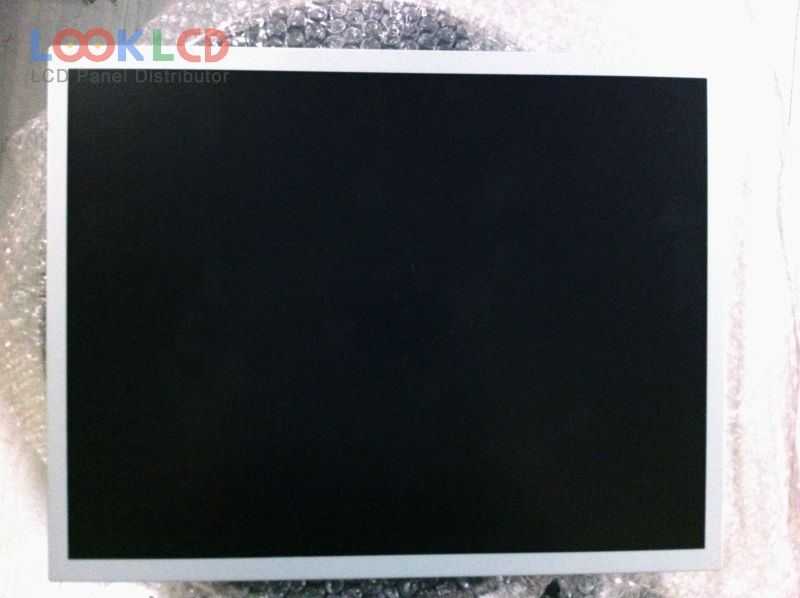

| Onderdeel nommer | LQ150X1LG93 |
| Handelsmerk | SHARP |
| Grootte | 15.0 |
| Toepassing | GM |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 800:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SHARP |
| paneel model | LQ150X1LG93 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.0 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 304.128×228.096 mm |
| buitelyn | 326.5×253.5×10.1 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) |
| kleure vertoon | 16.2M (6-bit + FRC) |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 80/80/65/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | GM |
| LQ150X1LAM3 | SHARP | 15.0 | 1024×768 |
| LQ150X1LG11 | SHARP | 15.0 | 1024×768 |
| LQ150X1LG55 | SHARP | 15.0 | 1024×768 |
| LQ150X1LG71 | SHARP | 15.0 | 1024×768 |
| LQ150X1LG91 | SHARP | 15.0 | 1024×768 |
| LQ150X1LG96 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGB1 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGN2 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGN7 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW12 | SHARP | 15.0 | 1024×768 |
| LQ061Y1VG01 | SHARP | 6.1 | 800×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LQ104V1DW01 | SHARP | 10.4 | 640×480 |
| LQ150X1LG92 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGC2 | SHARP | 15.0 | 1024×768 |
| LQ190E1LC06 | SHARP | 19.0 | 1280×1024 |
| LQ196A1LZ12 | SHARP | 19.6 | 1600×1200 |
| LQ6BN01 | SHARP | 5.6 | 320×240 |
| LT121AC53000 | TOSHIBA | 12.1 | 466×350 |
| LTB218JP01-001 | Samsung | 21.8 | 1366×1024 |
