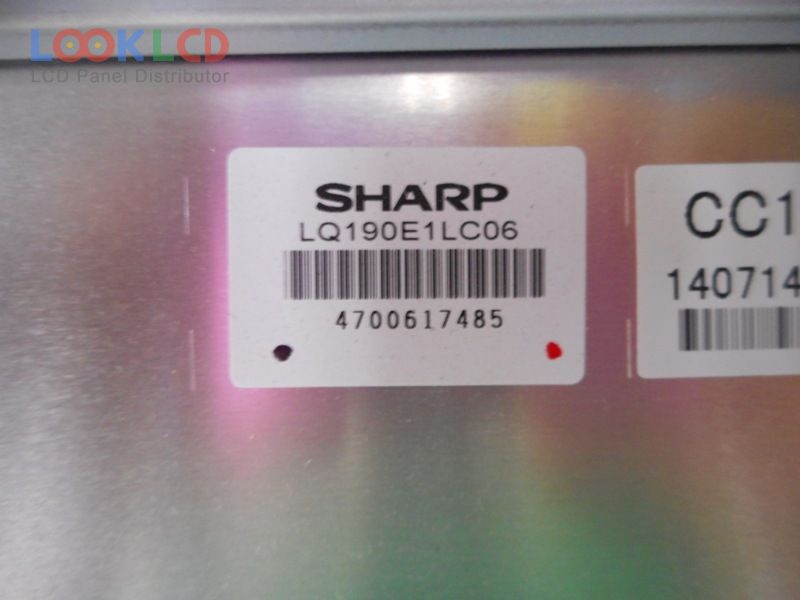

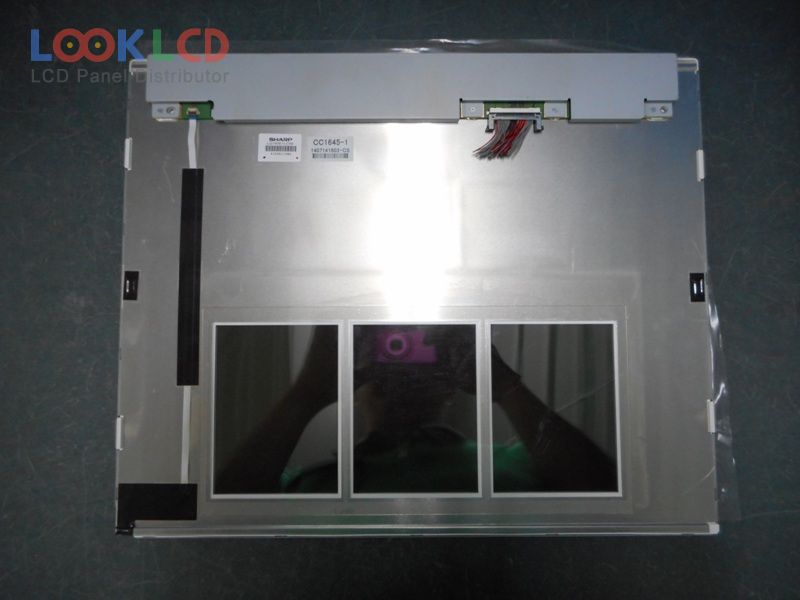

| Onderdeel nommer | LQ190E1LC06 |
| Handelsmerk | SHARP |
| Grootte | 19.0 |
| Toepassing | GM |
| Resolusie | 1280×1024 |
| Samestelling | LCM |
| Helderheid | |
| CR | |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SHARP |
| paneel model | LQ190E1LC06 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 19.0 inch |
| resolusie | 1280(RGB)×1024 , SXGA |
| vertoonmodus | ASV, Normally Black, Transmissive |
| aktiewe area | 376.32×301.056 mm |
| oppervlak | Clear |
| helderheid | |
| kontras verhouding | |
| kleure vertoon | 16.7M (8-bit) |
| reaksie tyd | 35 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | GM |
