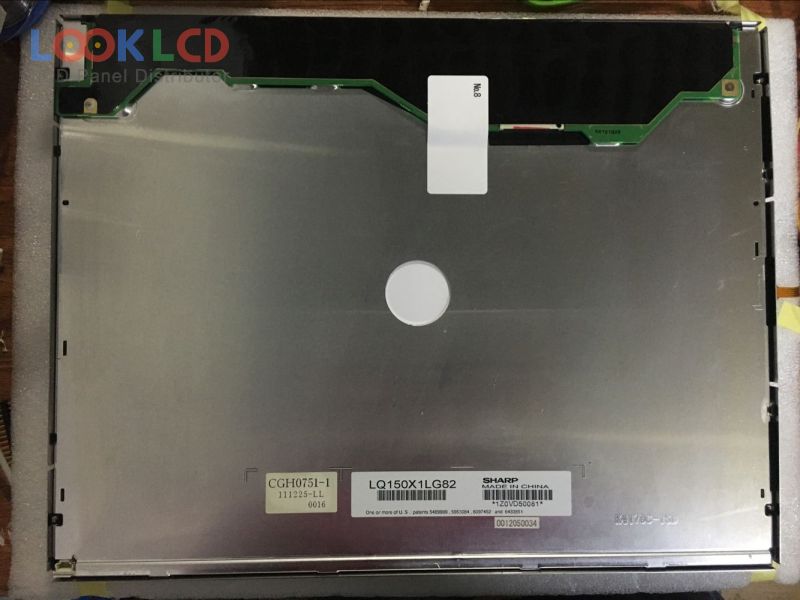

| Onderdeel nommer | LQ150X1LG82 |
| Handelsmerk | SHARP |
| Grootte | 15.0 |
| Toepassing | IA |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 550:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SHARP |
| paneel model | LQ150X1LG82 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.0 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 304.128×228.096 mm |
| buitelyn | 326×252×14.2 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 550:1 (Typ.) |
| kleure vertoon | 16.2M (6-bit + FRC), CIE193151% |
| reaksie tyd | 2/6 (Typ.)(Tr/Td) |
| kykhoek | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 10S3PWLEDWithout Driver |
| sein koppelvlak | LVDS (1 ch, 8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
