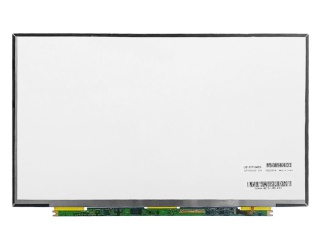

| Onderdeel nommer | LQ133T1JW23 |
| Handelsmerk | Sharp |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 2560×1440 |
| Samestelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | Sharp |
| model | LQ133T1JW23 (SHP1412) |
| diagonale grootte | 13.3 inch |
| tipe | Oxide TFT-LCD, LCM |
| pixel formaat | 2560(RGB)×1440 [Quad-HD] 221PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 293.76(H)×165.24(V) mm |
| buitelyn dof. | 304.98(H)×187.9(V) ×2.6(D) mm |
| ring area | - |
| behandeling | Antiglare (Haze 42%) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedryfsmodus | VA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 100% sRGB |
| Ligbron | WLED , 10K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LSN133DL02-A02 | Samsung | 13.3 | 2560×1600 |
