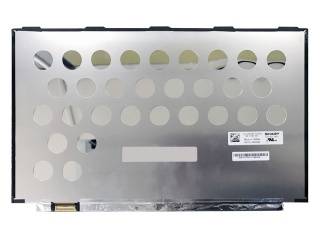

| Onderdeel nommer | LQ133M1JW23 |
| Handelsmerk | Sharp |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | Sharp |
| model naam | LQ133M1JW23 (SHP1460) |
| skerm grootte | 13.3 inch |
| tipe skerm | LCM , Oxide TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 166PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 293.76 × 165.24 (H×V) |
| buitelyn (mm) | 299.46 × 185.4 × 2.35 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 100% sRGB |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP133X7-P2IB | LG Display | 13.3 | 1024×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
