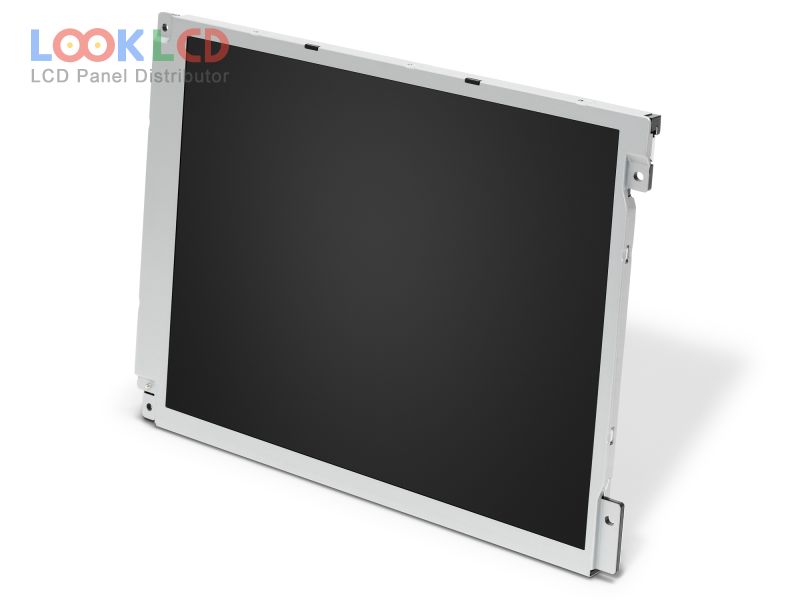

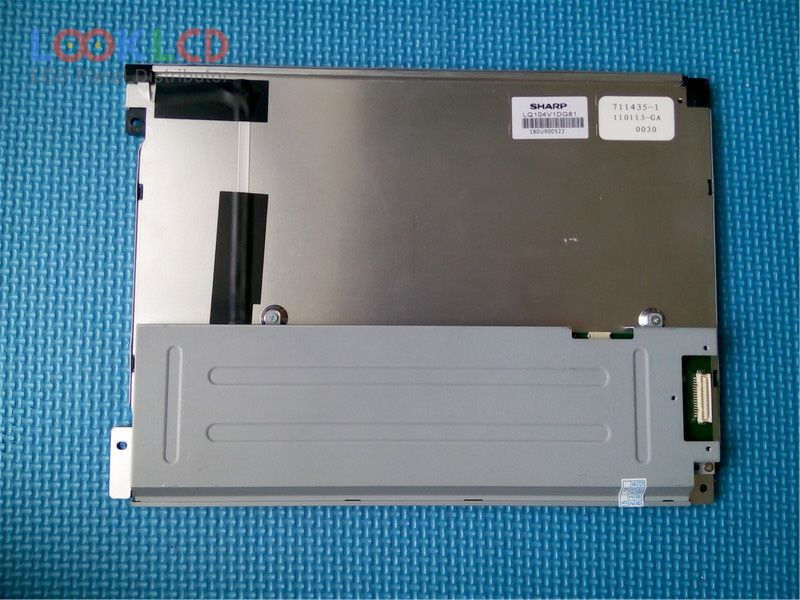

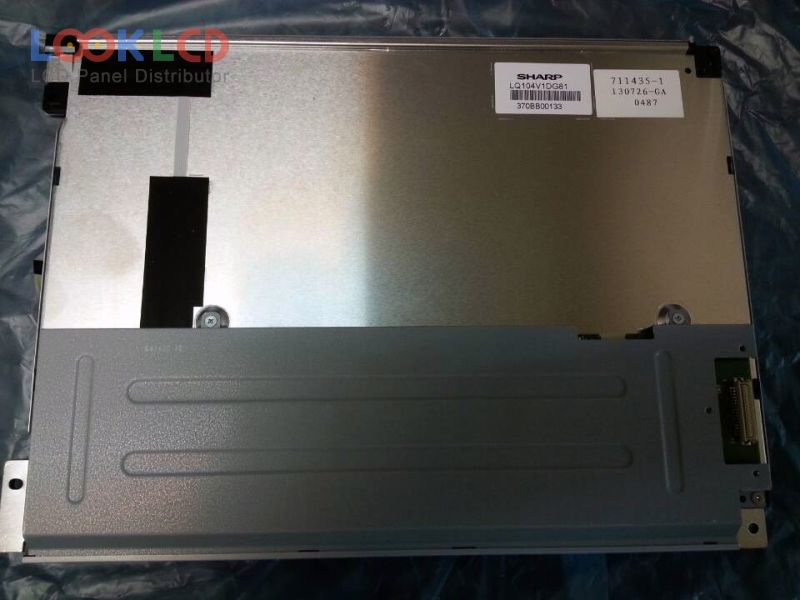

| Onderdeel nommer | LQ104V1DG81 |
| Handelsmerk | SHARP |
| Grootte | 10.4 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 450 |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | SHARP |
| paneel model | LQ104V1DG81 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.4 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 211.2×158.4 mm |
| buitelyn | 246.5×179.3×13 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193150% |
| reaksie tyd | 35 (Typ.)(Tr+Td) |
| kykhoek | 80/80/65/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | CMOS (1 ch, 6-bit), 31 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ104V1DW01 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| AA150XN02 | Mitsubishi | 15.0 | 1024×768 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| DLC0560AIG-3 | Other | 5.6 | 640×480 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| LB121S1-A2 | LG Display | 12.1 | 800×600 |
| LM057QB1T073 | SHARP | 5.7 | 320×240 |
| LM104VC1T51H | SHARP | 10.4 | 640×480 |
| LM104VC1T51R | SHARP | 10.4 | 640×480 |
| LT084AC27900 | TOSHIBA | 8.4 | 800×600 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
