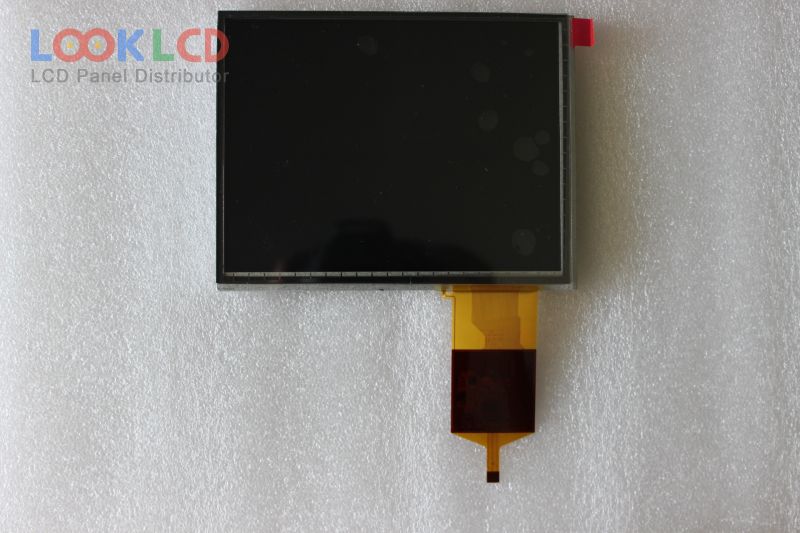

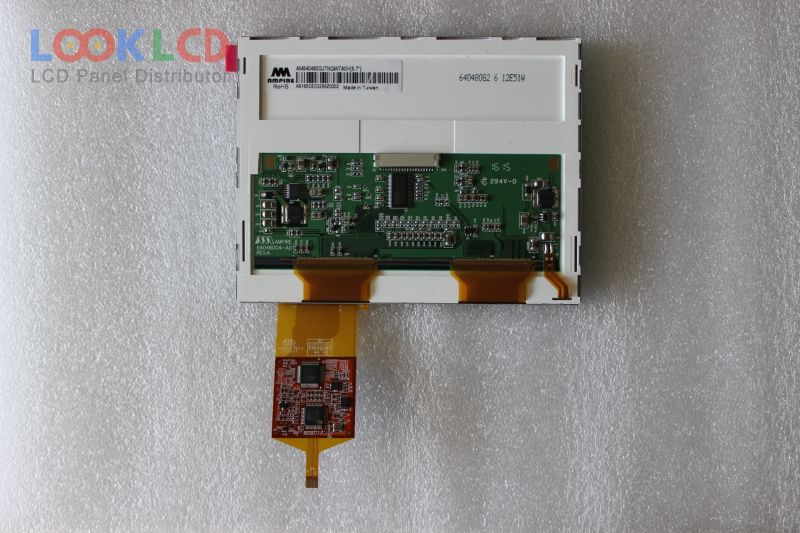

| Onderdeel nommer | AM-640480GJTNQW-TA0H |
| Handelsmerk | AMPIRE |
| Grootte | 5.7 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 425 |
| CR | 250:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-640480GJTNQW-TA0H |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 5.7 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 115.2×86.4 mm |
| buitelyn | 127×98.43×9.84 mm |
| oppervlak | |
| helderheid | 425 cd/m² (Typ.) |
| kontras verhouding | 250:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193150% |
| reaksie tyd | 50 (Typ.)(Tr+Td) |
| kykhoek | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
