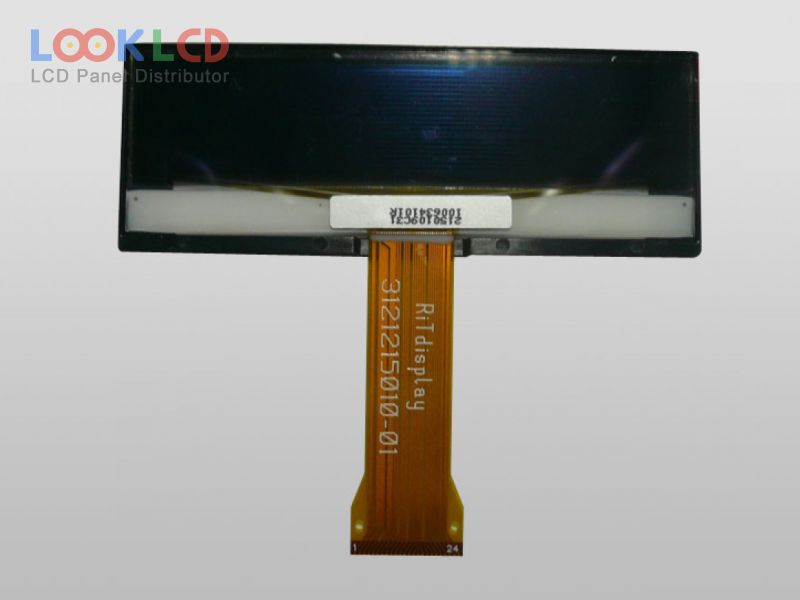

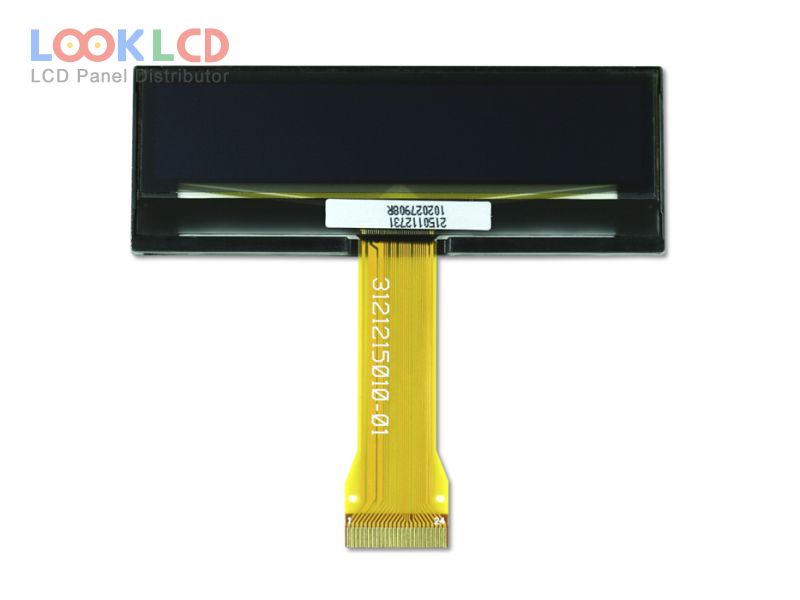

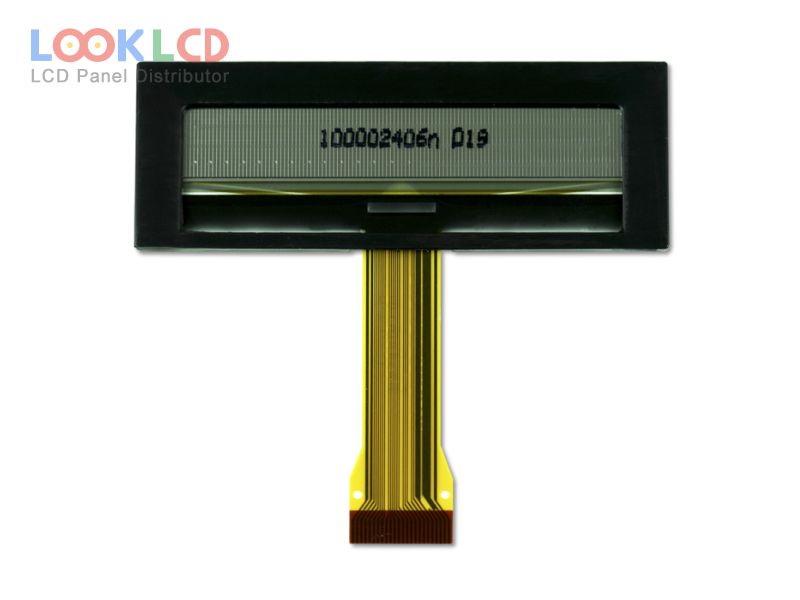

| Onderdeel nommer | RGS24128022YR000 |
| Handelsmerk | RiTdisplay |
| Grootte | 2.4 |
| Toepassing | IA |
| Resolusie | 128×22 |
| Samestelling | OLED |
| Helderheid | 100 |
| CR | 2000:1 |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | CPU/SPI/I²C |
| paneel handelsmerk | RiTdisplay |
| paneel model | RGS24128022YR000 |
| paneel tipe | PM-OLED , OLED |
| paneel grootte | 2.4 inch |
| resolusie | 128×22 |
| aktiewe area | 58.85×11.85 mm |
| buitelyn | 63.3×20.8×2.25 mm |
| oppervlak | Antiglare |
| helderheid | 100 cd/m² (Typ.) |
| kontras verhouding | 2000 : 1 (Min.) |
| kleure vertoon | Mono(Yellow) (1-bit) |
| kykhoek | 80/80/80/80 (Min.)(L/R/U/D) |
| frekwensie | 105Hz |
| bestuurder ic | COG Built-in SSD1305 |
| sein koppelvlak | 8-bit 6800/8080 parallel, SPI, I²C, 24 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | IA |
