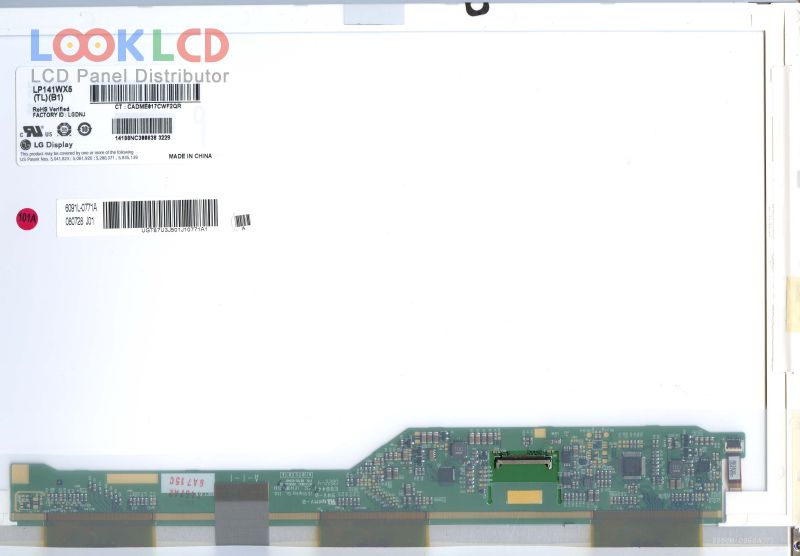

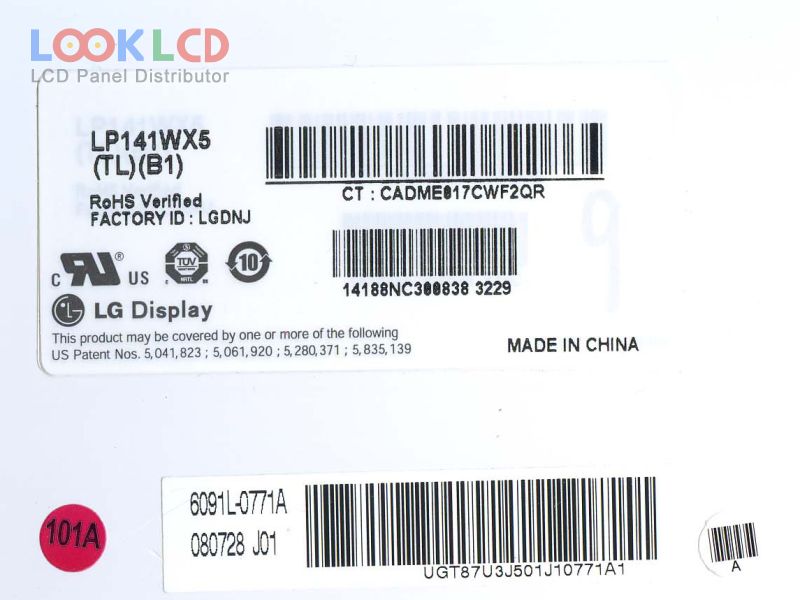

| Onderdeel nommer | LP141WX5-TLB1 |
| Handelsmerk | LG Display |
| Grootte | 14.1 |
| Toepassing | NBPC |
| Resolusie | 1280×800 |
| Samestelling | LCM |
| Helderheid | 220 |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | LG Display |
| paneel model | LP141WX5-TLB1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.1 inch |
| resolusie | 1280(RGB)×800 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 303.74×189.84 mm |
| buitelyn | 319.5×206.5×5.5 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Glare (Haze 0%) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 16 (Typ.)(Tr+Td) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 8S6PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
