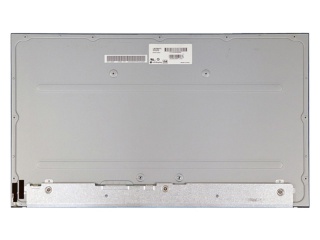

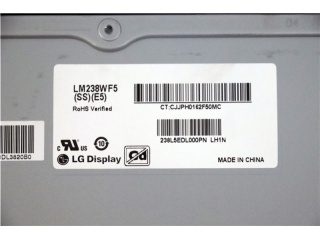

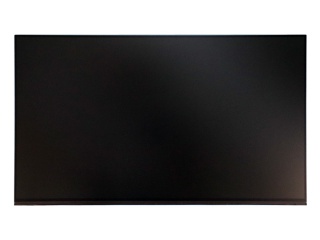

| Onderdeel nommer | LM238WF5-SSE5 |
| Handelsmerk | LG Display |
| Grootte | 23.8 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | LG Display |
| diagonale grootte | 23.8 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 92PPI |
| aktiewe area | 527.04(H)×296.46(V) mm |
| ring area | - |
| helderheid | 250 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 72% NTSC |
| gewig | 1.93/2.03Kgs (Typ./Max.) |
| raamkoers | 60Hz |
| koppelvlak tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| kragtoevoer | 5.0V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LM238WF5-SSE5 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 535.2(H)×313.12(V) ×12.76(D) mm |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 14 (Typ.)(G to G) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| Ligbron | WLED , 30K hours , W/O Driver |
| ontwerp vir | Desktop Monitor |
| raakpaneel | In-Cell Touch |
