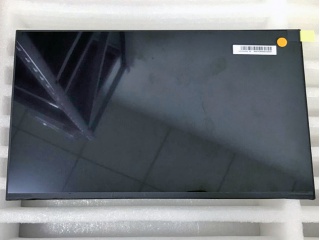

| Onderdeel nommer | LC156LF3L01 |
| Handelsmerk | PANDA |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | Oxide TFT-LCD , CELL |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K |
| Agterlig | No |
| Koppelvlak | |
| handelsmerk | PANDA |
| diagonale grootte | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| aktiewe area | 344.16(H)×193.59(V) mm |
| ring area | - |
| helderheid | 0 cd/m² |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| plaat dikte | 0.40+0.40 mm |
| ondersteun kleur | 262K 47% NTSC |
| vorm styl | - |
| raamkoers | 60Hz |
| model | LC156LF3L01 |
| tipe | Oxide TFT-LCD , CELL |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 354.36(H)×204.04(V) ×1.08(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 25 (Typ.)(Tr+Tf) |
| bedryfsmodus | FFS, Normally Black, Transmissive |
| oordrag | 6.8% (Typ.)(with Polarizer) |
| Ligbron | No B/L |
| ontwerp vir | Laptop |
| raakpaneel | Without |
