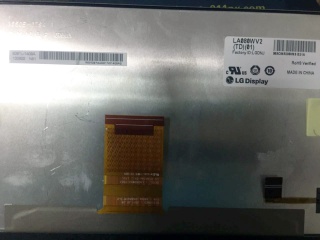

| Onderdeel nommer | LA070WV2-TD01 |
| Handelsmerk | LG Display |
| Grootte | 7.0 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 9S2P |
| Koppelvlak | Parallel |
| paneel handelsmerk | LG Display |
| paneel model | LA070WV2-TD01 |
| paneel grootte | 7.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 800(RGB)×480, WVGA, 133PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 152.4(W)×91.44(H) mm |
| ring opening | 154.45(W)×93.24(H) mm |
| omtrek grootte | 169(W)×103.45(H) mm |
| oppervlak | Antiglare |
| helderheid | 550 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 70/70/50/60 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 6/9 (Typ.)(Tr/Td) |
| kleure vertoon | 262K 64% NTSC |
| tipe lamp | 9S2P WLED , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 165/175g (Typ./Max.) |
| aansoek | Automotive Display |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| insetspanning | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
