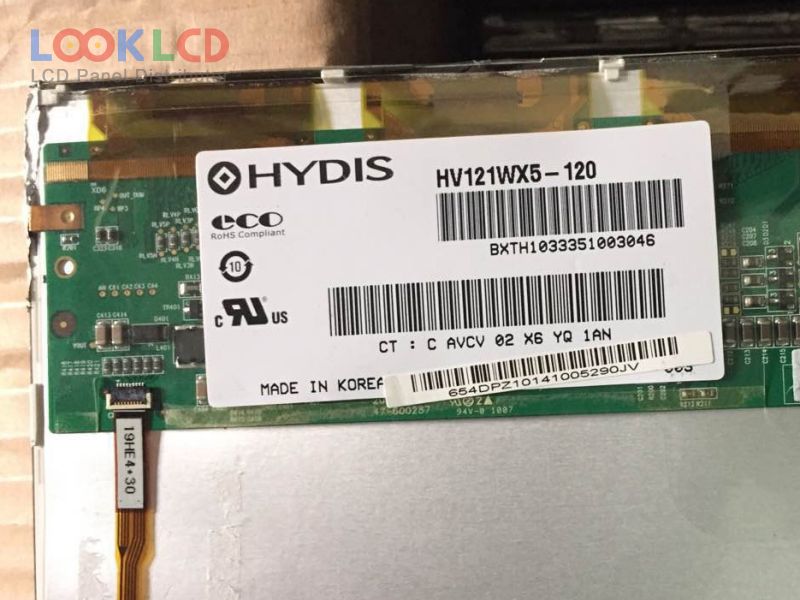

HV121WX5-120

HV121WX5-120
HV121WX5-120
HV121WX5-120 thumb HV121WX5-120 thumb
Handelsmerk
HYDIS
Grootte
12.1
Toepassing
PAD
Resolusie
1280×800
Samestelling
LCM
Helderheid
220
CR
500:1
Kleure
262K
Agterlig
WLED
Koppelvlak
eDP
In Stock
3800
Spesifikasies

Onderdeel nommer HV121WX5-120
HandelsmerkHYDIS
Grootte12.1
ToepassingPAD
Resolusie1280×800
SamestellingLCM
Helderheid220
CR500:1
Kleure262K
AgterligWLED
KoppelvlakeDP
paneel handelsmerkHYDIS
paneel modelHV121WX5-120 1 Compatible model
paneel tipe a-Si TFT-LCD , LCM
paneel grootte12.1 inch
resolusie1280(RGB)×800 , WXGA
vertoonmodusAFFS, Normally Black, Transmissive
aktiewe area261.12×163.2 mm
buitelyn276.8×180×6.8 mm
oppervlak
helderheid220 cd/m² (Typ.)
kontras verhouding500:1 (Typ.)
kleure vertoon262K (6-bit)
reaksie tyd30 (Typ.)(Tr+Td)
kykhoek89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp12S4PWLEDEmbedded (LED Driver)
sein koppelvlakeDP (1 Lane), 30 pins
insetspanning3.3V (Typ.)
aansoekPAD
Familie Model
HV121WX4-110 HYDIS 12.1 1280×800
HV121WX4-120 HYDIS 12.1 1280×800
HV121WX5-110 HYDIS 12.1 1280×800
HV121WX5-113 HYDIS 12.1 1280×800
HV121WX5-114 HYDIS 12.1 1280×800
HV121WX5-120 HYDIS 12.1 1280×800
HV121WX5-121 HYDIS 12.1 1280×800
HV121WX6-110 HYDIS 12.1 1280×800
HV121WX6-111 HYDIS 12.1 1280×800
HV121WX6-112 HYDIS 12.1 1280×800
