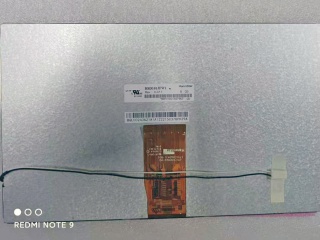

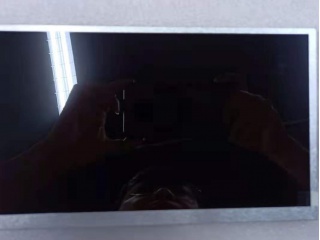

| Onderdeel nommer | HSD101JFW1-C11 |
| Handelsmerk | HannStar |
| Grootte | 10.1 |
| Toepassing | Automotive Display |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | HannStar |
| model | HSD101JFW1-C11 |
| diagonale grootte | 10.1 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1024(RGB)×600 [WSVGA] 117PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 222.72(H)×125.28(V) mm |
| buitelyn dof. | 235(H)×143(V) ×6.3(D) mm |
| ring area | 226(H)×128.5(V) mm |
| behandeling | Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | IPS Pro, Normally Black, Transflective |
| ondersteun kleur | 16.2M 45% NTSC |
| Ligbron | WLED [6S7P] , 20K hours , W/O Driver |
| gewig | 265/275g (Typ./Max.) |
| ontwerp vir | Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 8-bit) , 60 pins FPC |
| kragtoevoer | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
