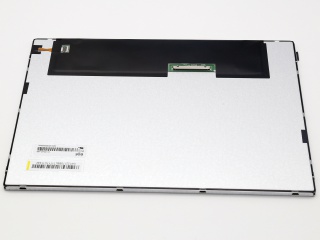

| Onderdeel nommer | GV122WXM-N80 |
| Handelsmerk | BOE |
| Grootte | 12.2 |
| Toepassing | Industrial |
| Resolusie | 1280×800 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | BOE |
| model naam | GV122WXM-N80 |
| skerm grootte | 12.2 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1280(RGB)×800 (WXGA) 123PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 262.656 × 164.16 (H×V) |
| buitelyn (mm) | 278 × 184 × 9.91 (H×V×D) |
| ring area (mm) | 264.66 × 166.66 (H×V) |
| behandeling | - |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 50% NTSC |
| agterlig | WLED , With LED Driver |
| massa | 564g (Typ.) |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
