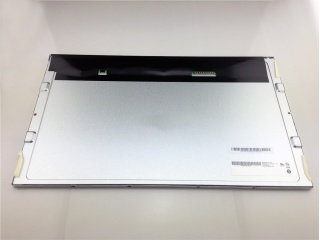

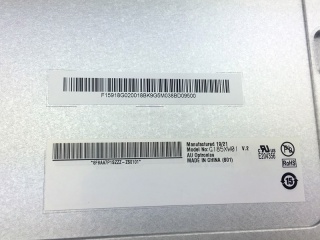

| Onderdeel nommer | G185XW01 V201 |
| Handelsmerk | AUO |
| Grootte | 18.5 |
| Toepassing | Industrial |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | G185XW01 V201 |
| paneel grootte | 18.5" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 84PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 409.8(W)×230.4(H) mm |
| ring opening | 413.4(W)×234.0(H) mm |
| omtrek grootte | 430.4(W)×254.7(H) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 3.5/1.5 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M 70% NTSC |
| tipe lamp | WLED , 50K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 1.44Kgs (Max.) |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 30 pins Connector |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
