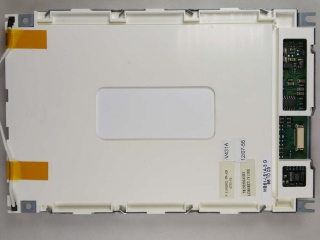

| Onderdeel nommer | F-51900NCU-FW-ADN |
| Handelsmerk | OPTREX |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | CSTN-LCD, LCM |
| Helderheid | |
| CR | 25:1 |
| Kleure | Color |
| Agterlig | CCFL |
| Koppelvlak | Parallel |
| handelsmerk | OPTREX |
| model | F-51900NCU-FW-ADN |
| diagonale grootte | 5.7 inch |
| tipe | CSTN-LCD, LCM |
| pixel formaat | 320(RGB)×240 [QVGA] 70PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 115.2(H)×86.4(V) mm |
| buitelyn dof. | 168(H)×111(V) ×7.4(D) mm |
| helderheid | 120 cd/m² (Typ.) |
| kontras verhouding | 25:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 300/100 (Typ.)(Tr/Td) |
| kykhoek | - |
| bedryfsmodus | STN, Normally Black, Transmissive |
| ondersteun kleur | Color |
| Ligbron | CCFL , 20K hours , W/O Driver |
| gewig | 234g (Max.) |
| ontwerp vir | Industrial |
| raamkoers | 70Hz |
| raakpaneel | Without |
| koppelvlak tipe | Parallel Data (1ch, 8-bit) |
| kragtoevoer | 3.0/5.0V (Typ.)(VCC) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
