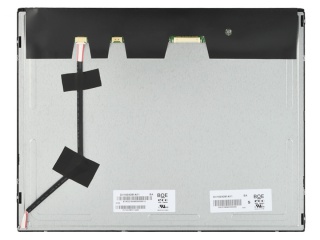

| Onderdeel nommer | DV150X0M-N11 |
| Handelsmerk | BOE |
| Grootte | 15.0 |
| Toepassing | Digital Signage |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 12S4P |
| Koppelvlak | LVDS |
| paneel handelsmerk | BOE |
| paneel model | DV150X0M-N11 |
| paneel grootte | 15.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1024(RGB)×768, XGA, 85PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 304.128(W)×228.096(H) mm |
| ring opening | 306.5(W)×230.1(H) mm |
| omtrek grootte | 326.5(W)×253.5(H) ×9.7(D) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M 72% NTSC |
| tipe lamp | 12S4P WLED , 50K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 930g |
| aansoek | Digital Signage |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| G150XG01 V1 | AUO | 15.0 | 1024×768 |
| G150XG01 V3 | AUO | 15.0 | 1024×768 |
| G150XTN03.1 | AUO | 15.0 | 1024×768 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| HT15X23-100 | HYDIS | 15.0 | 1024×768 |
| LQ150X1DG11 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW73 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW94 | SHARP | 15.0 | 1024×768 |
| LTN150X5-L02 | Samsung | 15.0 | 1024×768 |
| LTN150XG-L05 | Samsung | 15.0 | 1024×768 |
