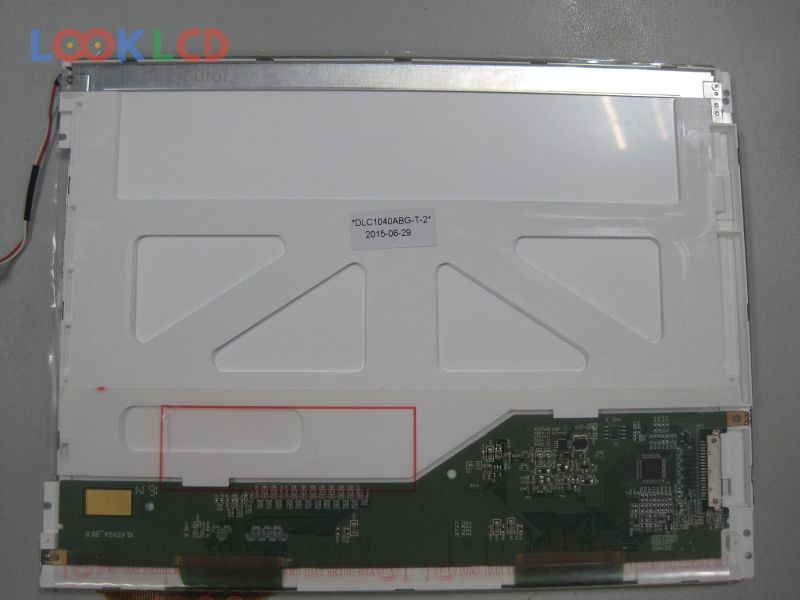

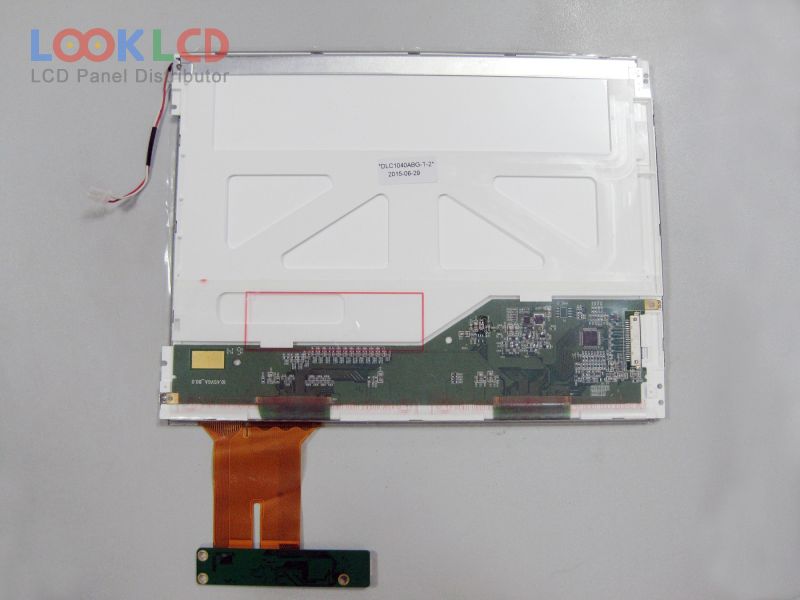

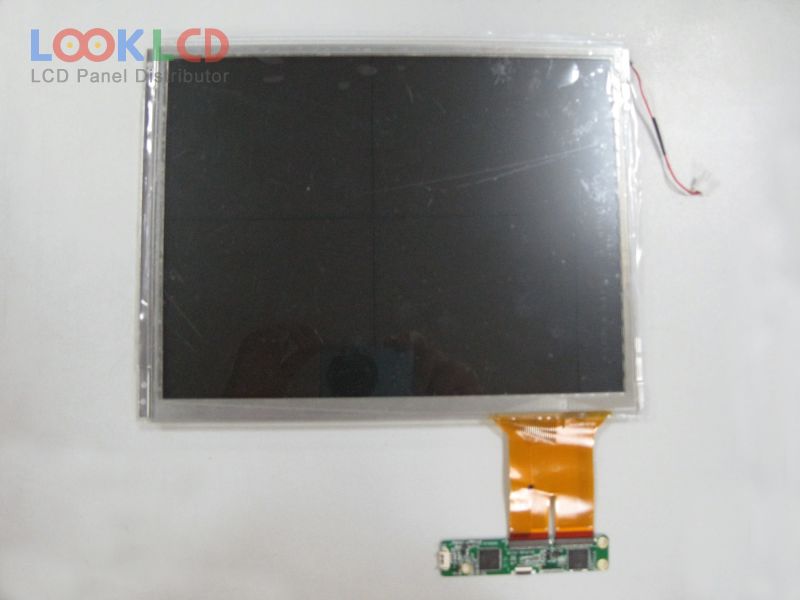

| Onderdeel nommer | DLC1040ABG-T-2 |
| Handelsmerk | Other |
| Grootte | 10.4 |
| Toepassing | CNS |
| Resolusie | 800×600 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | DLC |
| paneel model | DLC1040ABG-T-2 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.4 inch |
| resolusie | 800(RGB)×600 , SVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 211.2×158.4 mm |
| buitelyn | 236×183 mm |
| oppervlak | |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | CNS |
