| Onderdeel nommer | COM70H7M44UTC |
| Handelsmerk | Ortustech |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 900:1 |
| Kleure | 262K/16.7M |
| Agterlig | 7S2P |
| Koppelvlak | LVDS |
| vervaardiger | Ortustech |
| model naam | COM70H7M44UTC |
| skerm grootte | 7.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 800(RGB)×480 (WVGA) 133PPI |
| reëling | RGB Vertical Stripe |

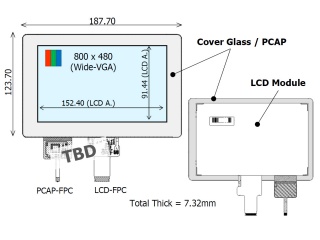

| aktiewe area (mm) | 152.4 × 91.44 (H×V) |
| buitelyn (mm) | 187.7 × 123.7 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating (3H) |
| helderheid | 900 cd/m² (Typ.) |
| kontras verhouding | 900 : 1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| reaksie | 50 (Typ.)(Tr+Tf) ms |
| goeie uitsig by | Symmetry |
| werksmodus | VA, Normally Black, Transflective |
| kleurdiepte | 262K/16.7M 50% NTSC |
| agterlig | 7S2P WLED , 50K hours , No Driver |
| massa | TBD |
| gebruik vir | Industrial Outdoor High Brightness |
| herlaaitempo | 60Hz |
| raakskerm | PCAP |
| sein tipe | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
