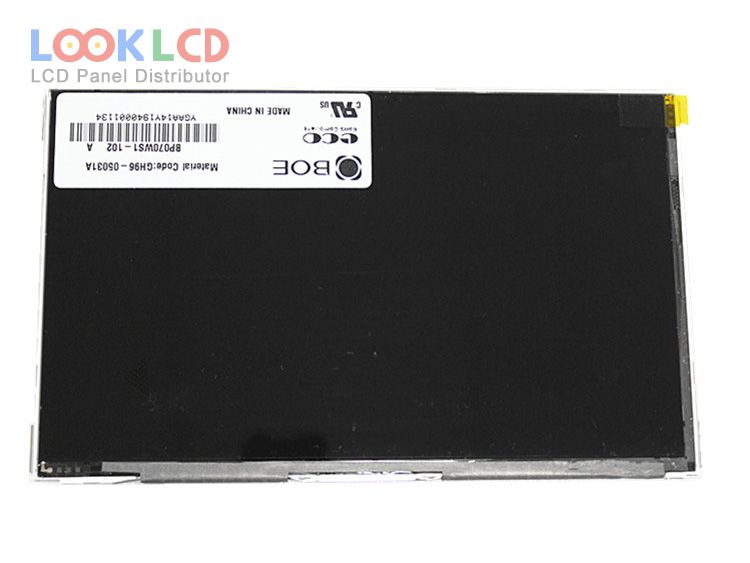

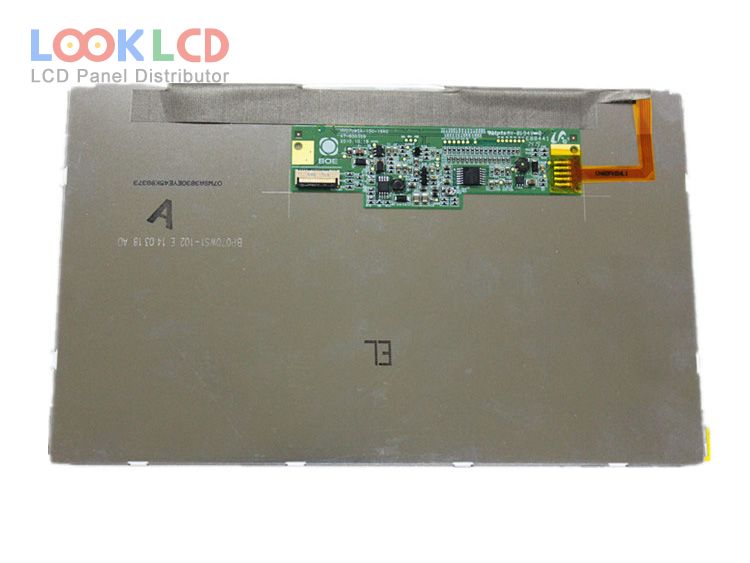

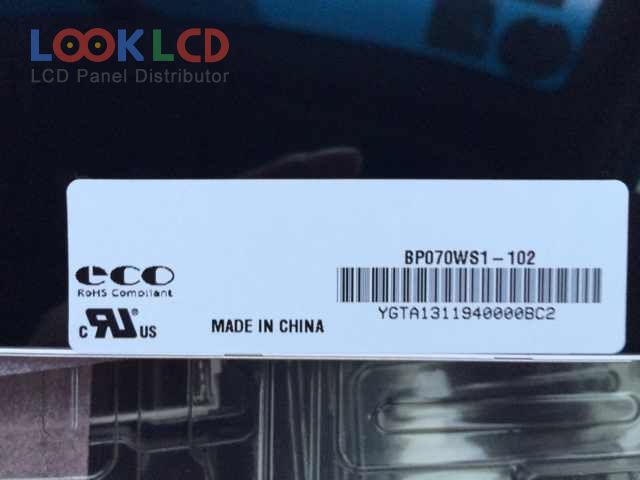

| Onderdeel nommer | BP070WS1-102 |
| Handelsmerk | BOE |
| Grootte | 7.0 |
| Toepassing | PAD |
| Resolusie | 1024×600 |
| Samestelling | LCM |
| Helderheid | 400 |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | BOE |
| paneel model | BP070WS1-102 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 1024(RGB)×600 , WSVGA |
| vertoonmodus | ADS, Normally Black, Transmissive |
| aktiewe area | 153.6×90 mm |
| buitelyn | 164.05×100.86 mm |
| oppervlak | Hard coating (3H), Antireflection |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC), CIE193152% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 31 pins |
| insetspanning | 3.7V (Typ.) |
| aansoek | PAD |
