| Onderdeel nommer | COM70H7M40ULC |
| Handelsmerk | Ortustech |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:13:1 |
| Kleure | 262K/16.7M |
| Agterlig | 7S2P |
| Koppelvlak | |
| paneel handelsmerk | Ortustech |
| paneel grootte | 7.0" |
| resolusie | 800(RGB)×480, WVGA, 133PPI |

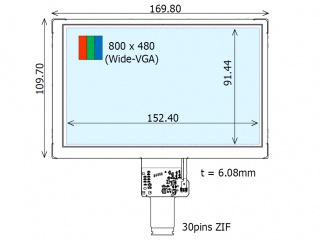

| vertoon area | 152.4(W)×91.44(H) mm |
| omtrek grootte | 169.8(W)×109.7(H) ×6.11(D) mm |
| helderheid | 800 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 262K/16.7M 50% NTSC |
| frekwensie | 60Hz |
| gewig | TBD |
| paneel model | COM70H7M40ULC |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Hard coating (3H) |
| kontras verhouding | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| vertoonmodus | VA, Normally Black, Transflective |
| reaksie tyd | 50 (Typ.)(Tr+Td) |
| tipe lamp | 7S2P WLED , 50K hours , Without Driver |
| raakskerm | Without |
| aansoek | Industrial Outdoor High Brightness Automotive Display |
