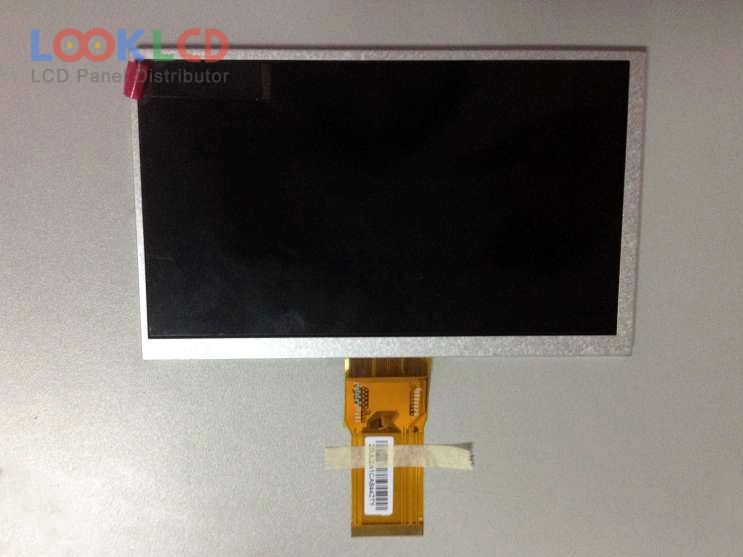

| Onderdeel nommer | CLAA070NQ02 XN |
| Handelsmerk | CPT |
| Grootte | 7.0 |
| Toepassing | MP4 |
| Resolusie | 1024×600 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | CPT |
| paneel model | CLAA070NQ02 XN |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 1024(RGB)×600 , WSVGA |
| vertoonmodus | HFFS, Normally Black, Transmissive |
| aktiewe area | 154.214×85.92 mm |
| buitelyn | 164.9×100 mm |
| oppervlak | Antiglare |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193150% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6S4PWLEDWithout Driver |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit), 50 pins |
| insetspanning | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aansoek | MP4 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
