| Onderdeel nommer | COM22H2P69ULC |
| Handelsmerk | Ortustech |
| Grootte | 2.2 |
| Toepassing | Handheld & PDA |
| Resolusie | 240×320 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:13.5:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | Ortustech |
| diagonale grootte | 2.2 inch |
| pixel formaat | 240(RGB)×320 [QVGA] 180PPI |
| aktiewe area | 33.84(H)×45.12(V) mm |
| ring area | - |
| helderheid | 400 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 35% NTSC |
| gewig | 11.0g |
| raamkoers | - |
| model | COM22H2P69ULC |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |

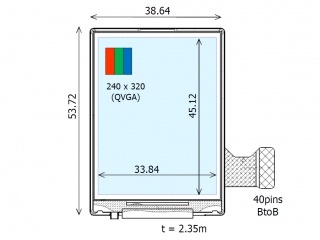

| buitelyn dof. | 38.64(H)×53.72(V) ×3.55(D) mm |
| behandeling | Hard coating (3H) |
| kontras verhouding | 800:1 (Typ.) (TM) 3.5:1 (Typ.) (RF) |
| reaksie tyd | 60/40 (Max.)(Tr/Td) |
| bedryfsmodus | VA, Normally Black, Transflective |
| Ligbron | WLED [3S1P] , 50K hours , W/O Driver |
| ontwerp vir | Handheld & PDA |
| raakpaneel | Without |
