| Onderdeel nommer | COM121T9M14CSS |
| Handelsmerk | Ortustech |
| Grootte | 12.1 |
| Toepassing | Industrial |
| Resolusie | 800×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | Ortustech |
| model | COM121T9M14CSS |
| diagonale grootte | 12.1 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×600 [SVGA] 82PPI |
| konfigurasie | RGB Vertical Stripe |

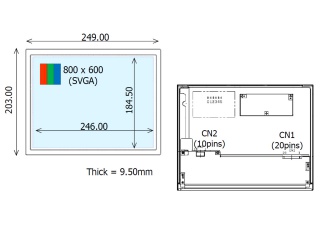

| aktiewe area | 246(H)×184.5(V) mm |
| buitelyn dof. | 260.5(H)×203(V) ×10(D) mm |
| helderheid | 600 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 40 (Max.)(Tr+Td) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| bedryfsmodus | FFS, Normally Black, Transmissive |
| ondersteun kleur | 262K/16.7M 48% NTSC |
| Ligbron | WLED , 70K hours , With LED Driver |
| gewig | 500g (Typ.) |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
