| Onderdeel nommer | COM104T9M10ERS |
| Handelsmerk | Ortustech |
| Grootte | 10.4 |
| Toepassing | Industrial |
| Resolusie | 800×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | Ortustech |
| model | COM104T9M10ERS |
| diagonale grootte | 10.4 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×600 [SVGA] 96PPI |
| konfigurasie | RGB Vertical Stripe |

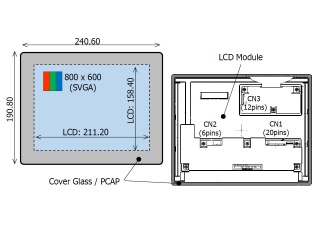

| aktiewe area | 211.2(H)×158.4(V) mm |
| buitelyn dof. | 240(H)×190.8(V) mm |
| helderheid | 480 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 40 (Max.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Min.)(CR≥10) |
| bedryfsmodus | FFS, Normally Black, Transmissive |
| ondersteun kleur | 262K/16.7M 50% NTSC |
| Ligbron | WLED , 70K hours , With LED Driver |
| gewig | - |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | PCAP |
| koppelvlak tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| EDTCB29QB0 | Panasonic | 10.4 | 800×600 |
| LP104V2 | LG Display | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LTA104S1-L01 | Samsung | 10.4 | 800×600 |
| LTD104EDQP | TOSHIBA | 10.4 | 1024×768 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| NL8060AC26-05 | NLT | 10.4 | 800×600 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
