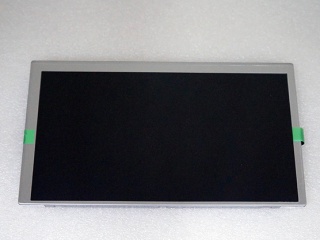

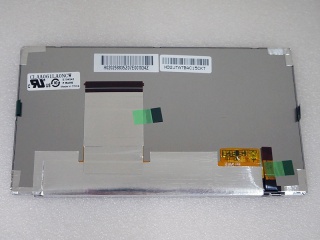

| Onderdeel nommer | CLAA061LA0NCW |
| Handelsmerk | CPT |
| Grootte | 6.1 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| handelsmerk | CPT |
| diagonale grootte | 6.1 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 153PPI |
| aktiewe area | 136.2(H)×72(V) mm |
| helderheid | - |
| kyk rigting | 6 o'clock |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 70% NTSC |
| gewig | - |
| raamkoers | 60Hz |
| koppelvlak tipe | TTL (1 ch, 6-bit) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | CLAA061LA0NCW |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | - |
| kontras verhouding | 400:1 (Typ.) (TM) |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| Ligbron | WLED , 30K hours |
| ontwerp vir | Automotive Display |
| raakpaneel | Without |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
