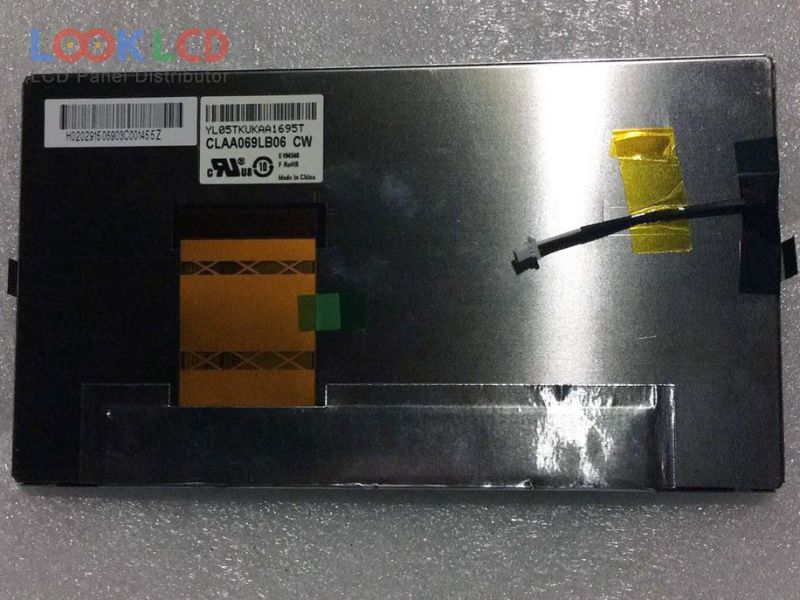

| Onderdeel nommer | CLAA069LB06 CW |
| Handelsmerk | CPT |
| Grootte | 7.0 |
| Toepassing | CNS |
| Resolusie | 800×480 |
| Samestelling | LCM |
| Helderheid | |
| CR | |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | CPT |
| paneel model | CLAA069LB06 CW |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 800(RGB)×480 , WVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 156.6×81.6 mm |
| oppervlak | |
| helderheid | |
| kontras verhouding | |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLED |
| sein koppelvlak | TTL (1 ch, 6-bit) |
| aansoek | CNS |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| LTA070B2C0F | TOSHIBA | 7.0 |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| PA080XS4 | E Ink | 7.9 | 480×468 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
