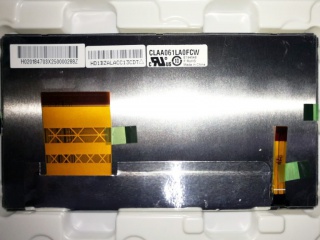

| Onderdeel nommer | CLAA061LA0FCW |
| Handelsmerk | CPT |
| Grootte | 6.1 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | CPT |
| paneel grootte | 6.1" |
| resolusie | 800(RGB)×480, WVGA, 153PPI |
| vertoon area | 136.2(W)×72(H) mm |
| helderheid | - |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10) |
| beste uitsig op | 6 o'clock |
| kleure vertoon | 262K 70% NTSC |
| frekwensie | 60Hz |
| paneel gewig | - |
| sein koppelvlak | TTL (1 ch, 6-bit) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| paneel model | CLAA061LA0FCW |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 400:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| tipe lamp | WLED |
| raakskerm | Without |
| aansoek | Automotive Display |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
