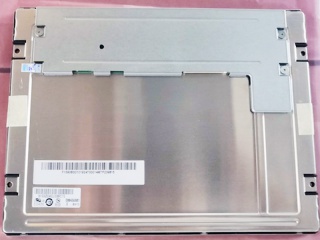

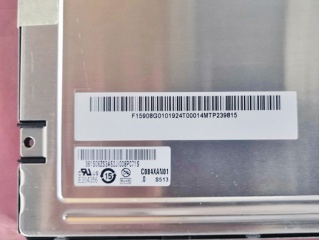

| Onderdeel nommer | C084XAN01.0 |
| Handelsmerk | AUO |
| Grootte | 8.4 |
| Toepassing | Automotive Display |
| Resolusie | 1024×768 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | AUO |
| skerm grootte | 8.4 inch |
| pixel nommer | 1024(RGB)×768 (XGA) 152PPI |
| aktiewe area (mm) | 170.496 × 127.872 (H×V) |
| helderheid | - |
| kykhoek | - |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M |
| massa | - |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (1 ch, 8-bit) , 40 pins Connector |
| maks. graderings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| model naam | C084XAN01.0 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | - |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| reaksie | 30 (Max.)(Tr+Td) ms |
| werksmodus | AHVA, Normally Black, Transmissive |
| agterlig | WLED |
| gebruik vir | Automotive Display |
| raakskerm | Without |
| AA084VB02 | Mitsubishi | 8.4 | 640×480 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AA084VD02 | Mitsubishi | 8.4 | 640×480 |
| B084SN03 V0 | AUO | 8.4 | 800×600 |
| G084SN05 V8 | AUO | 8.4 | 800×600 |
| G084SN05 V9 | AUO | 8.4 | 800×600 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
