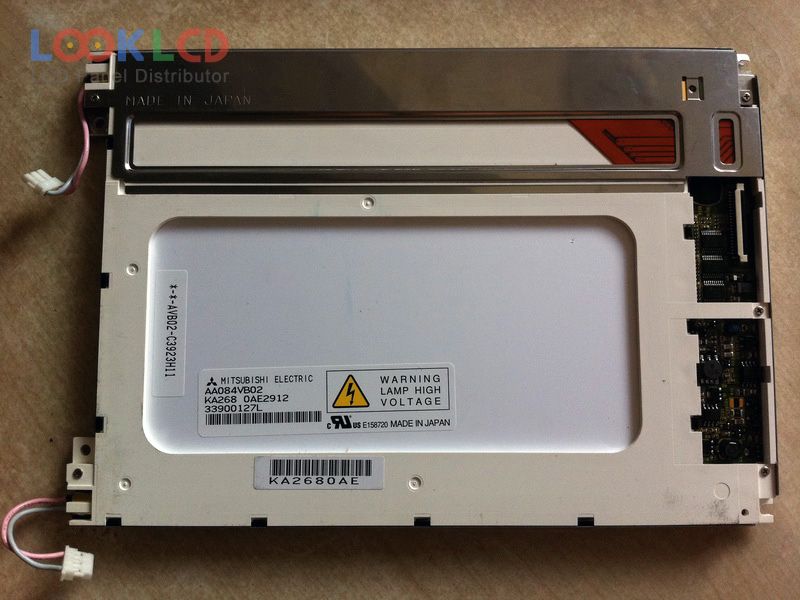

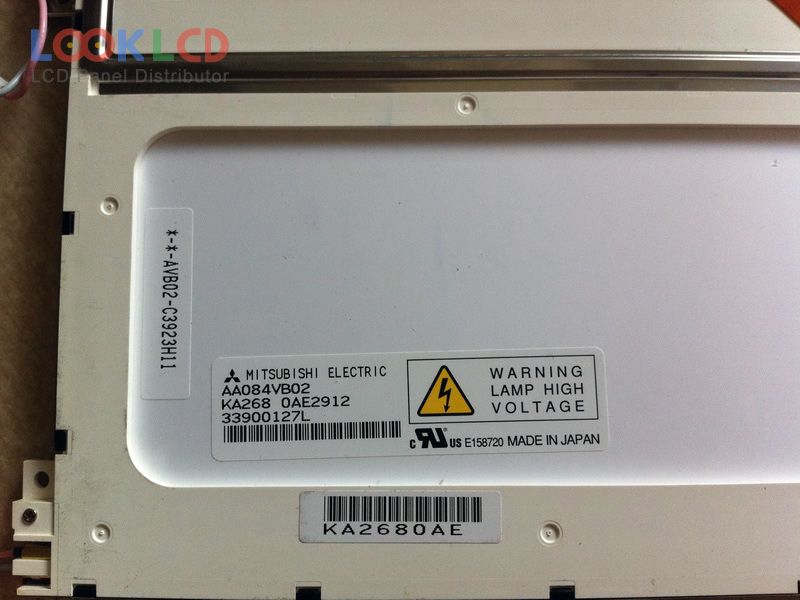

| Onderdeel nommer | AA084VB02 |
| Handelsmerk | Mitsubishi |
| Grootte | 8.4 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 300:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | TTL |
| paneel handelsmerk | Mitsubishi |
| paneel model | AA084VB02 1 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 8.4 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 170.88×128.16 mm |
| buitelyn | 221×152.4 mm |
| oppervlak | Antiglare (Haze 12%) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 300:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 20/30 (Typ.)(Tr/Td) |
| kykhoek | 60/60/50/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 2 pcsCCFLWithout Driver |
| sein koppelvlak | CMOS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.)(VCC) |
| aansoek | IA |
