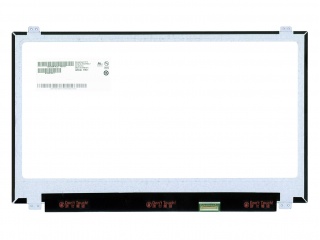

| Onderdeel nommer | B156HTN05.2 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | AUO |
| model naam | B156HTN05.2 (AUO25ED) |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| buitelyn (mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 700 : 1 (Typ.) (TM) |
| kykhoek | 70/70/60/60 (Typ.)(CR≥10) |
| reaksie | 5 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 72% NTSC |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 120Hz |
| raakskerm | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
